Parameter：
Model | Capacity(l/batch) | Power(kw) | Dimension(mm) |
METHENA-100 | 70 | 2.2 | 700*450*550 |
METHENA-150 | 105 | 3 | 700*450*570 |
METHENA-300 | 210 | 4 | 1000*600*750 |
METHENA-500 | 350 | 7.5 | 1200*700*800 |
METHENA-1000 | 700 | 11 | 1500*800*1000 |
METHENA-1500 | 1050 | 15 | 1500*950*1300 |
METHENA-2000 | 1400 | 18.5 | 1500*1200*1400 |
METHENA-3000 | 2100 | 18.5 | 2200*1200*1400 |
METHENA-4000 | 2800 | 22 | 2500*1300*1500 |
METHENA-5000 | 3500 | 30 | 2500*1400*1600 |
Introduction:

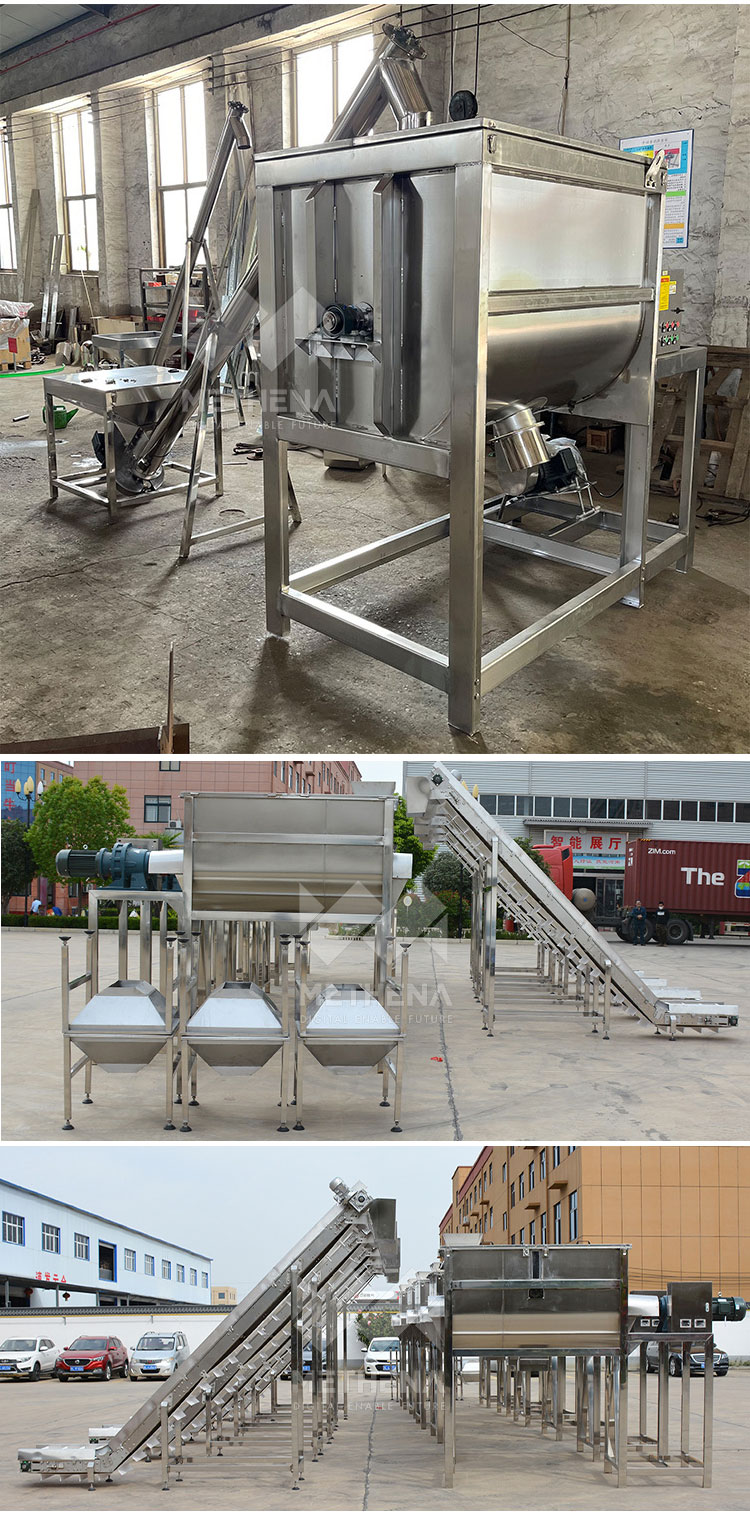

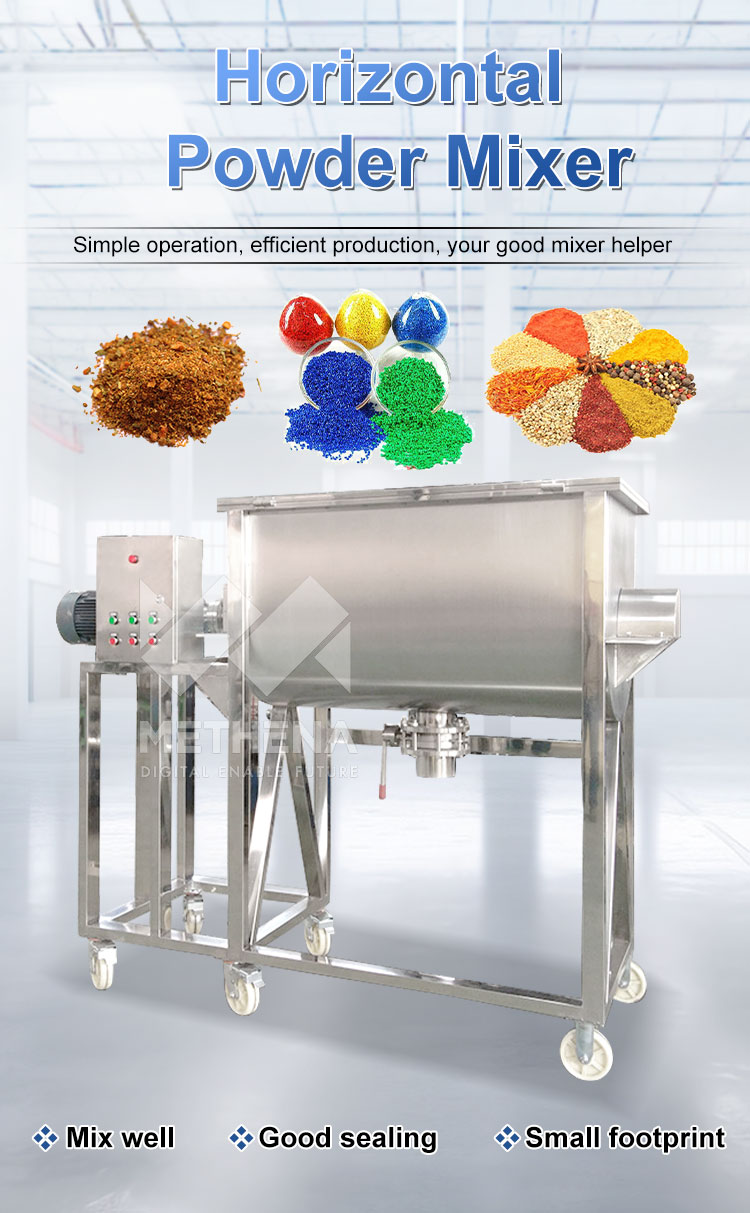

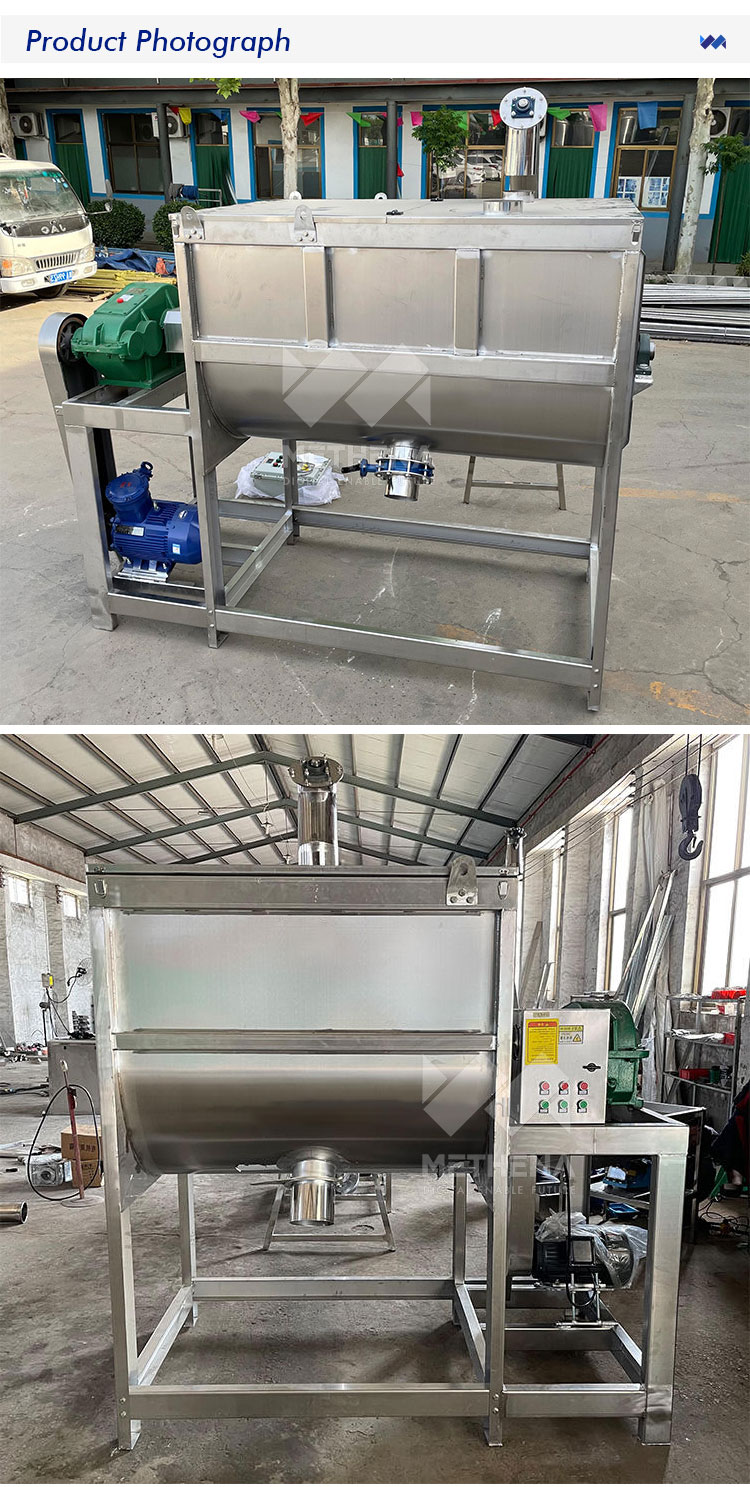

The horizontal mixer is an efficient mixing device widely used in industries such as chemicals, food, and pharmaceuticals. It consists of a U-shaped barrel, ribbon blades, and a drive mechanism, using double-shaft counter-rotating paddles to achieve fast and uniform mixing of materials. Depending on the material, it is available in carbon steel and 304 stainless steel. The horizontal mixer is easy to operate, has a short mixing cycle, and is highly efficient, making it an ideal industrial mixing solution.
High Efficiency: The unique mixing structure allows various materials to be fully and evenly mixed in a short time, significantly improving production efficiency.
Wide Applicability: Suitable for materials in various forms, such as powders, granules, and liquids, meeting the complex mixing needs of different industries.
Stable Operation: The sturdy structure ensures smooth and reliable operation, allowing for long continuous operation and reducing equipment downtime due to malfunctions.
Diverse Materials: The barrel material options include carbon steel and stainless steel, providing flexibility to adapt to material properties and operating environments.
Convenient Discharge: Multiple discharge methods and control forms are available, such as gate valve or valve-type discharge, ensuring smooth discharge with good sealing.
Easy to Clean and Maintain: The simple overall structure allows for easy disassembly and cleaning. Key parts are easy to lubricate and maintain, extending the equipment’s lifespan.
Chemical Industry: Mixing various chemical raw materials, dyes, paints, etc.
Plastic Industry: Mixing plastic pellets, resins, and other raw materials.
Rubber Industry: Mixing rubber raw materials, including natural and synthetic rubbers.
Food Processing: Mixing flour, powdered sugar, dairy products, seasonings, etc.
Pharmaceutical Manufacturing: Mixing pharmaceutical powders, traditional Chinese medicine formulations, etc.
Construction Industry: Mixing mortar, putty powder, gypsum, and other construction materials.Agriculture: Mixing fertilizers, animal feed, etc.
Cosmetic Manufacturing: Mixing various cosmetic raw materials, such as powders, liquids, and pastes.
Papermaking Industry: Mixing pulp and other papermaking chemicals.
Mining: Mixing different mineral powders and intermediate products in the refining process.
Environmental Protection Industry: Mixing solid waste and recycled materials.
Energy Industry: Mixing battery materials and other energy storage materials.
