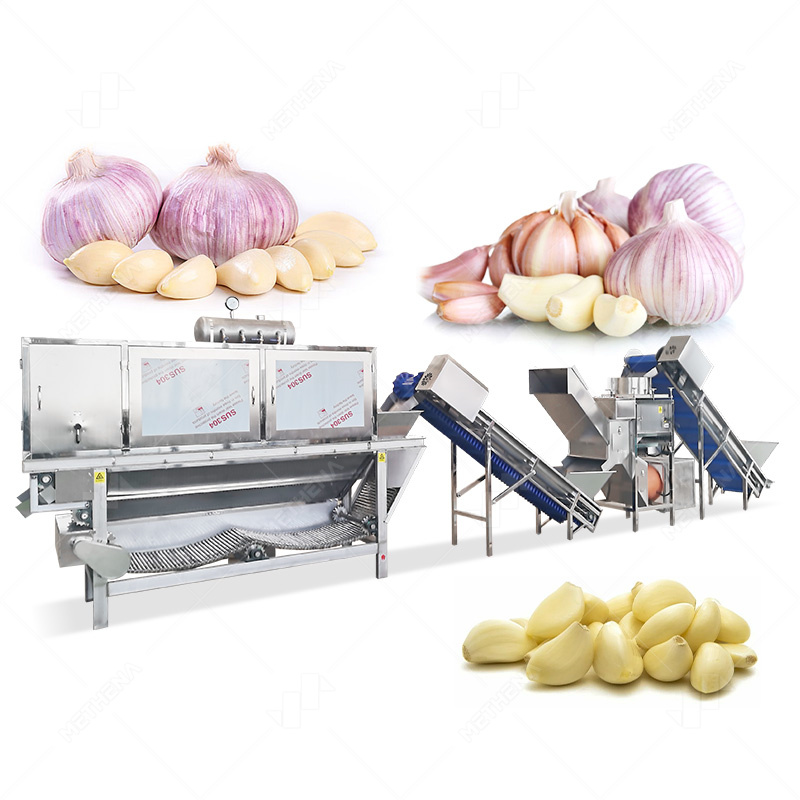

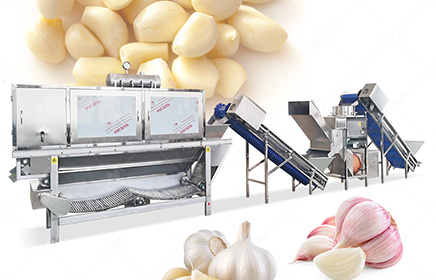

Are you tired of your garlic processing? Looking for a custom-made Garlic Processing Line that can continuously process garlic? OrangeMech is a factory-direct seller, offering competitive prices and quality to meet your every need. Come and talk to us!
Key attributes：
Condition:New
Power(w)：3.05KW
Warranty：1 Year
Voltage：220V/380V
Dimension(l*w*h)：2200*400*1500mm
Material：304 Stainless Steel
Core Components：motor
Application：Vegetable Processing Plant

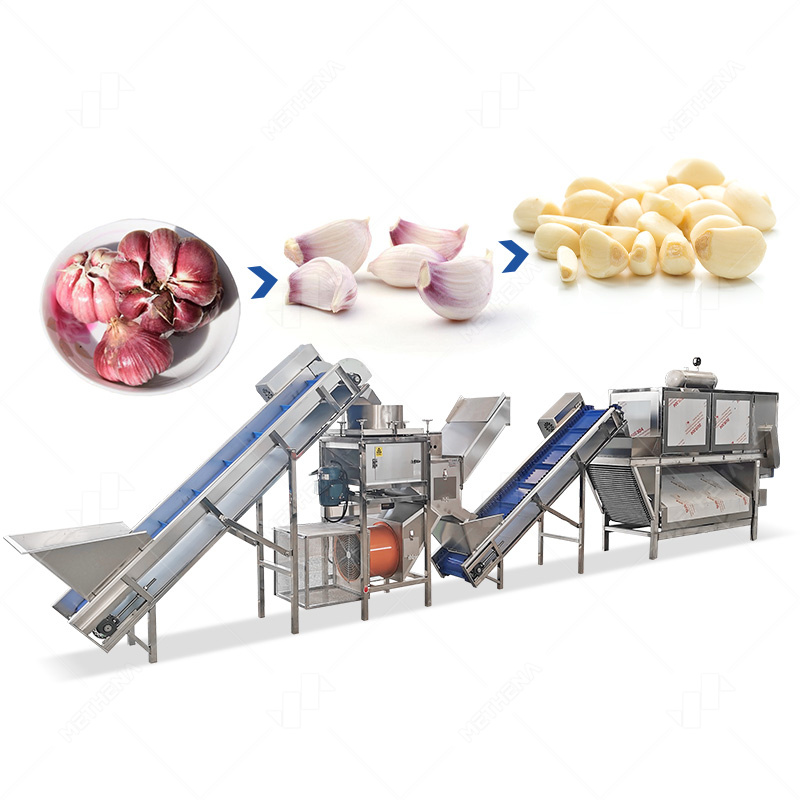

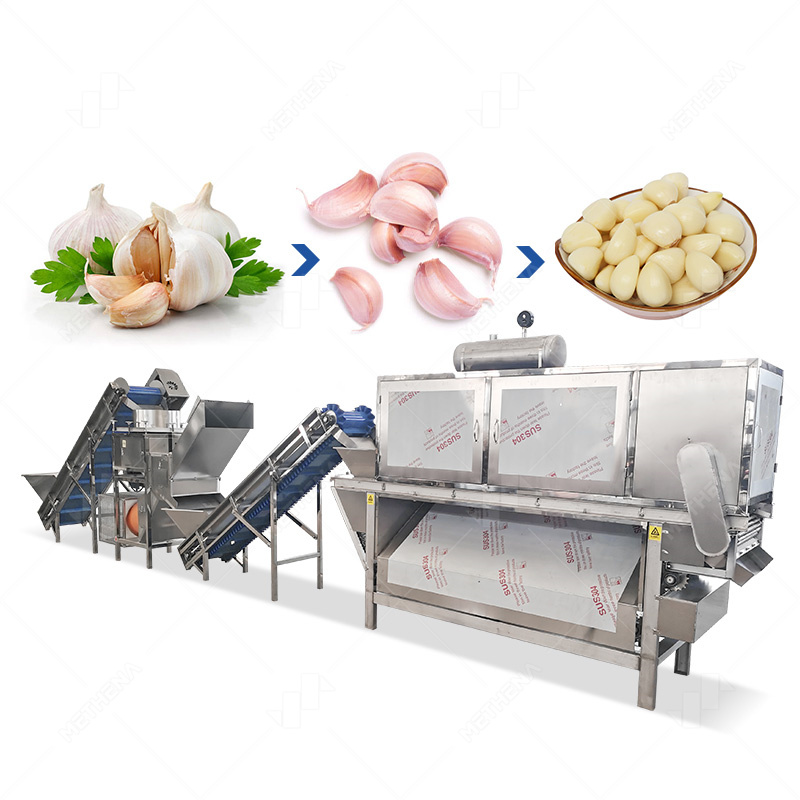

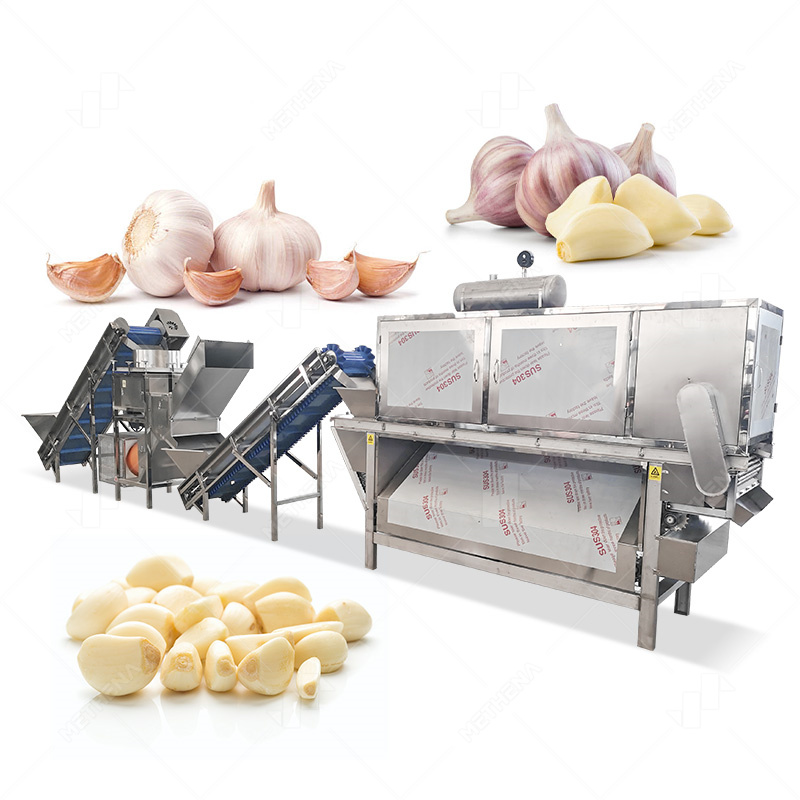

MeTheNa garlic peeler machine for sale offers high quality at factory prices and upgraded equipment technology. It supports continuous automatic production, freeing your hands. It can be used for fruit and vegetable processing, and can also support customized garlic processing. It can process garlic powder, minced garlic, mashed garlic and other finished products.

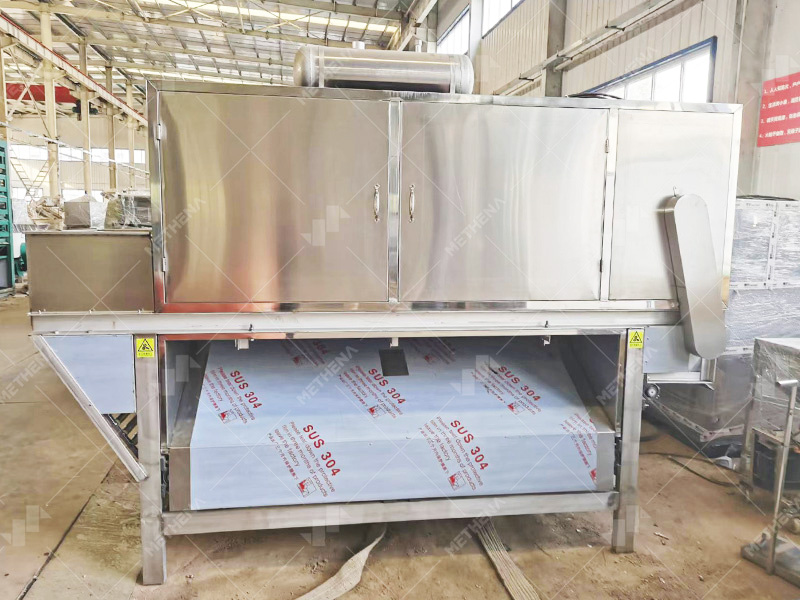

Our commercial continuous garlic peeling machine is a mechanical device used in commercial settings such as restaurants and food processing plants. It automatically, continuously, and in large quantities peels garlic cloves from their skin.
Parameter：

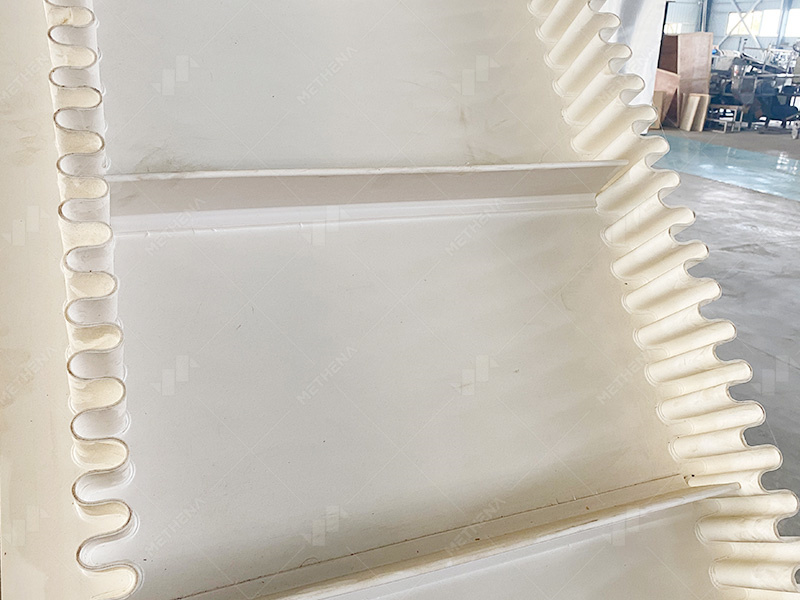

Name | Skirt conveyor belt |
Voltage | 380V |
Power | 0.75kw |
Material | stainless steel and PVC skirt conveyor belt |
Speed | adjustable |
Dimensions | 2200*400*1500mm |

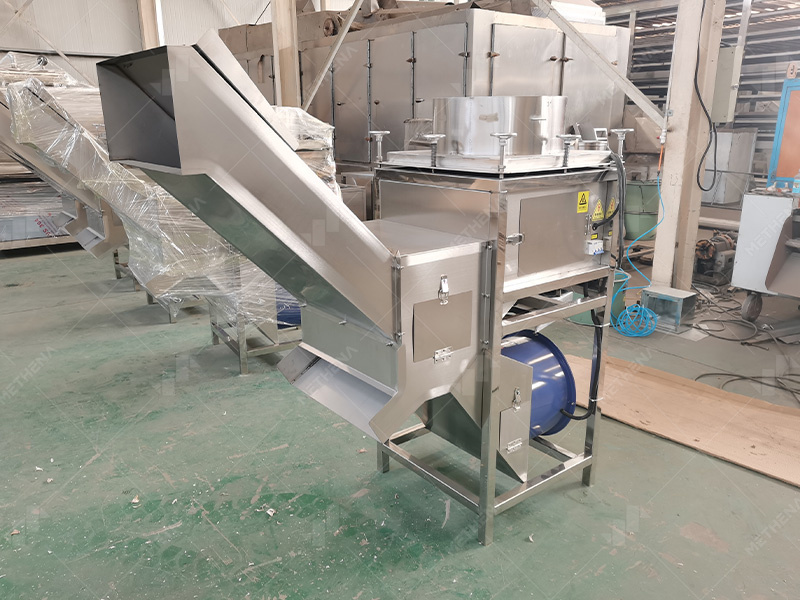

Name | Garlic Clove Slicer |
Voltage | 220V |
Power | 1.1kw |
Weight | 130kg |
Output | 600kg/h |
Dimensions | 700*800*1200mm |
Name | Garlic peeling machine (needs to be used with air compressor) |
Voltage | 220V |
Power | 1.2kw |
Gas consumption | 1.6m³/min |
Output | 200kg/h |
Dimensions | 1300*550*1400mm |
Video:
The MeTheNa commercial continuous garlic peeling machine is primarily based on the physical principles of "flexible friction" and "airflow separation," rather than sharp blade cutting.
Feeding: After being broken into cloves, the garlic cloves are evenly fed into the peeling machine's inlet via a vibrating feeder or elevator.
Pneumatic Peeling: The working chamber is typically a rotating rubber roller with a specially textured inner wall, or a fixed cavity containing a rotating rubber friction disc.
Flexible Friction: The garlic cloves are repeatedly tossed up and down within the roller, rolling and rubbing against each other and against the flexible rubber inner wall. This continuous, non-rigid friction gradually separates the garlic skin from the flesh.
Airflow Assistance: Simultaneously with friction, a powerful built-in fan generates airflow. Lighter pieces of garlic skin, loosened by friction, are blown up by the airflow and sucked away through specific channels (such as screen holes) into a waste collection bag/bin. Heavier, intact garlic cloves remain at the bottom of the peeling chamber.
Automatic Separation: The peeling chamber is equipped with a guide vane and a small fan. Garlic skins are drawn by the airflow to a collection bag or cyclone separator, while garlic cloves are continuously discharged along a stainless steel chute, achieving continuous "in-out" operation.

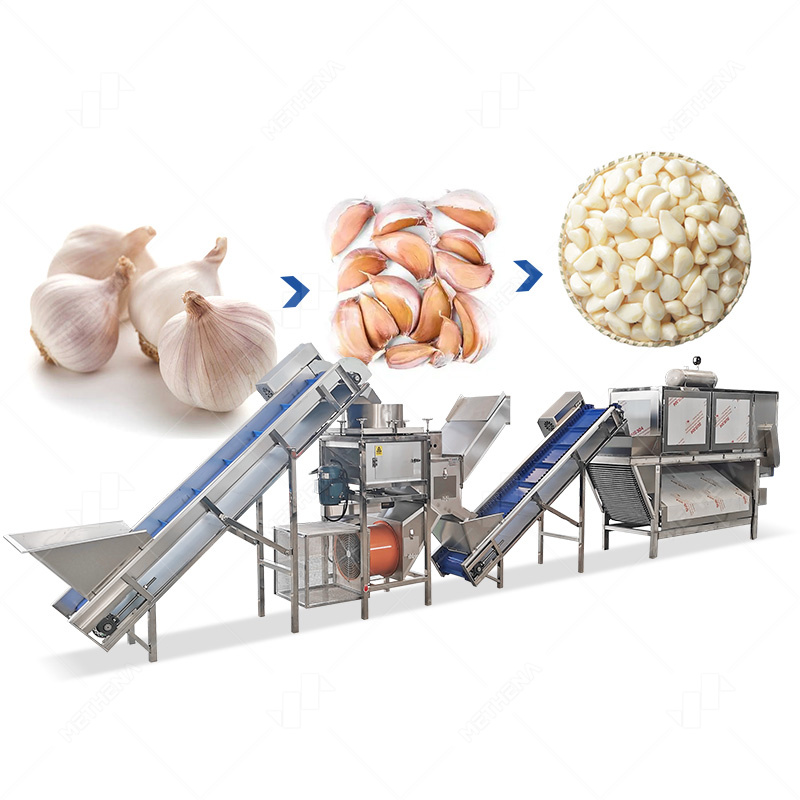

Circulation and Continuity: In continuous machines, the above "feed-friction-separation-discharge" process occurs simultaneously in different functional areas. Material flows through the machine like an assembly line, achieving uninterrupted continuous operation.
How Does Garlic Benefit You:
Garlic has anti-cancer properties, boosts immunity, regulates cardiovascular function, detoxifies and nourishes the skin, and is beneficial for healthy hair growth. It's particularly effective in lowering blood pressure and cholesterol, which can reduce the risk of heart disease and stroke. Its antibacterial and antiviral properties can also help prevent common colds. If your blood sugar is a bit high, eating garlic in moderation can help regulate it, making it particularly beneficial for diabetics.
Modular Design: The modular design of each unit facilitates cleaning and ensures high interoperability between devices, with interconnected Hoisters.
Continuous and Efficient: The unit supports continuous, uninterrupted production and achieves impressive yields. The equipment is continuously upgraded and optimized. The unit achieves clean, distinct cloves, a low breakage rate, and high-quality finished products.
Wide Application: The unit has a powerful processing capacity of 100-600 kg/h, with customizable outputs available. It is particularly suitable for large-scale garlic, fruit, and vegetable processing plants.
Garlic processing plants：are suitable for large-scale garlic processing, similar to vegetable distribution plants, and are highly skilled at handling large quantities of garlic.
Healthcare: Garlic has numerous health benefits, and with today's increasing focus on health, market demand for garlic is only expected to increase.
Seasoning industry: Garlic is ideal for making garlic powder, sauce, and mashed garlic, adding it to seasonings to enhance flavor.
METHENAprovides operational training:
We offer online guidance, and we also dispatch technicians for on-site installation and commissioning demonstrations. Each engineer is passport-certified.
Warranty:
We provide one-year after-sales service, excluding any damage caused by human error. Of course, we conduct extensive pre-shipment commissioning to ensure the equipment is optimally suited for your needs.
Delivery Time:
Normal delivery time is approximately 25 days, excluding custom products, which require negotiation. OrangeMech will arrange a delivery time that works best for you. Trust us!
