This highly efficient, new-type ice cream cone production line can quickly and stably mass-produce high-quality cones! The finished cones are crisp, uniform, and of standard shape. This premium new-type ice cream cone production line is affordable and highly favored by the market.
Key attributes：
Brand Name: Methena
Warranty: 1 Year
Optional Equipment: Mixer, Collection Unit, Counting Unit
Voltage: 380v/220v
Weight: 4500kg
Gas Consumption: 5-8kg/h
Capacity: 3500-4000pcs/h
Key Selling Points: High Productivity
Raw Material: Flour, Eggs, Sugar, Milk, Oil
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL
Our fully automatic ice cream cone production line is not only deeply compatible with diverse industries such as ice cream production, frozen food, snack food, and dessert baking, but also helps brands create a wide variety of products.
For ice cream cone processing, its fully automated operation ensures high production capacity, precise parameter control achieves standardization in specifications and taste, and it supports flexible customization of shape, flavor, and packaging, comprehensively meeting the diverse needs of the global food market for distinctive, healthy, and high-quality products.
Parameter：

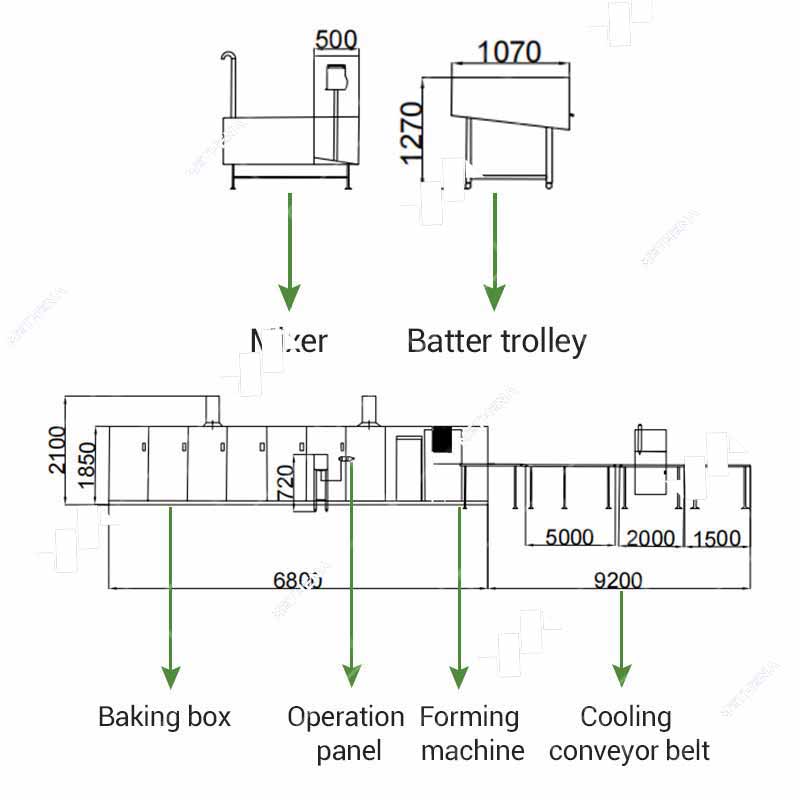

| Name | Power(kw) | Voltage(v) | Weight(kg) | Size(mm) | Capacity |
| Heating Mixing Drum | 4 | 220/380 | 200 | 800xH1650 | 200L |
| Icecream Cone Baking Machine | 3.37 | 4300 | 7600*2100*2000 | 3500-4000pcs/h | |
| Conveyor Belt Machine | 0.75 | 250 | 5000*800*500 | 200/h | |
| Automatic Bagging Machine | 0.75 | 200 | 2400*1100*1200 | 5000pcs/h |

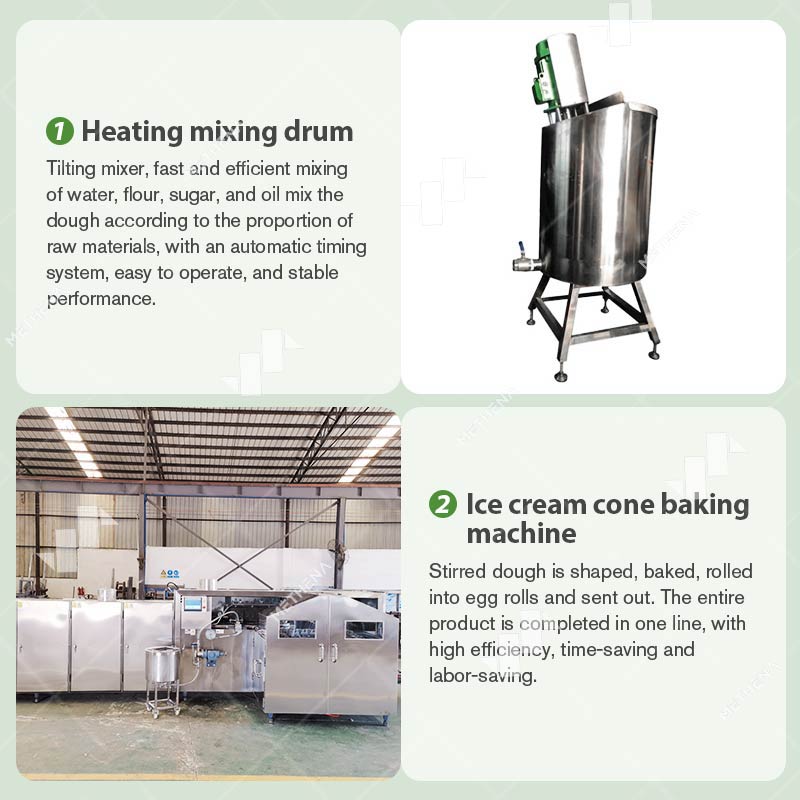

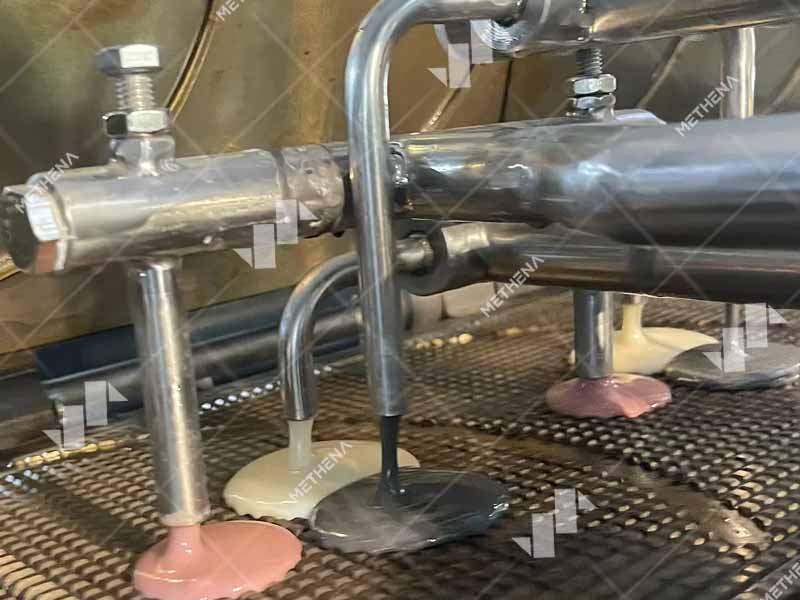

Heating Mixing Drum: Tilting heating mixer blends water, flour, sugar, oil and other raw materials into uniform batter in proportion at high speed. Equipped with an automatic timing system, it features user-friendly operation and consistent performance.

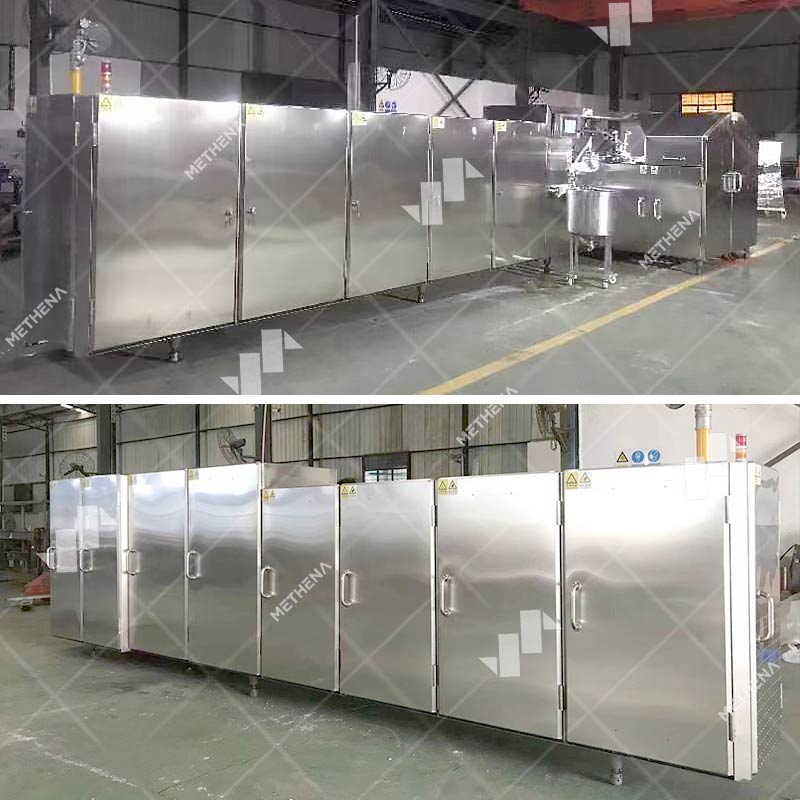

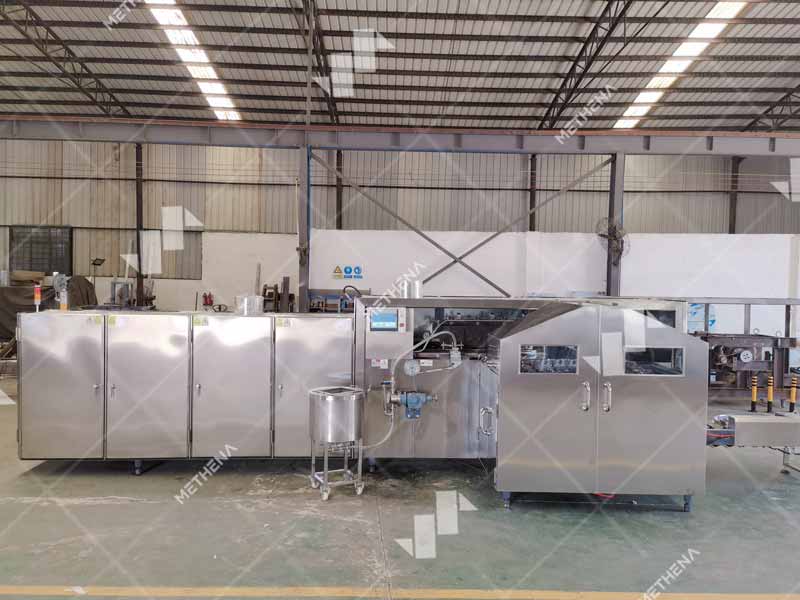

Icecream Cone Baking Machine: The prepared batter is shaped, baked, and rolled into ice cream cones before being automatically conveyed out. The one-stop integrated process ensures high production efficiency, saving significant time and labor costs.

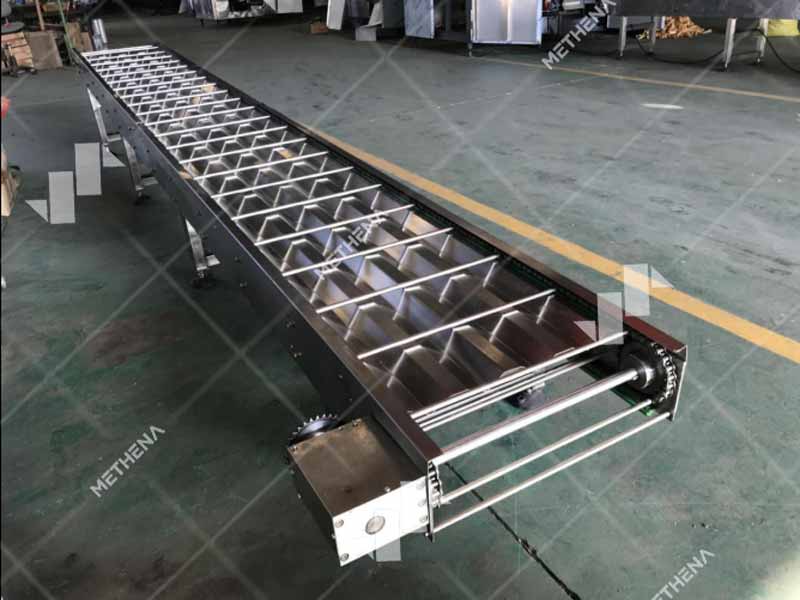

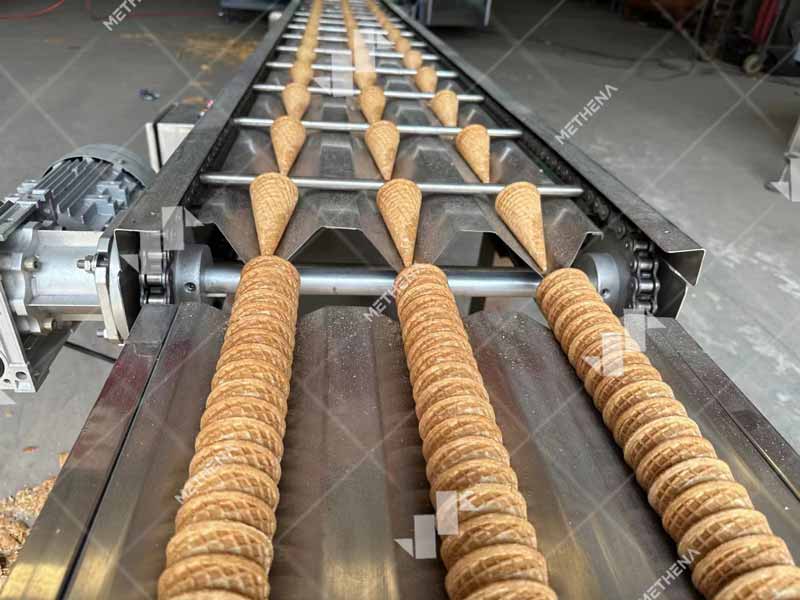

Conveyor Belt Machine: Cooling conveyor belt is designed for formed ice cream cones, integrating cooling and conveying functions to facilitate the subsequent packaging process. It transports cones in an orderly and hygienic manner.
Automatic Bagging Machine: Automatic bagging machine is suitable for the automatic packaging of finished ice cream cones. Its production capacity can be flexibly customized according to actual needs, fully meeting various output requirements while ensuring safe and hygienic production.
Highly Automated Operation: The entire process, from batter preparation and shaping to baking and unloading, is automated, enabling efficient and large-scale mass production.
Extended Service Life: Utilizing high-quality body materials and precision wear-resistant components, and forged through rigorous processes, ensures long-term stable operation.
Low Maintenance Costs: The simple and rational structural design, with few easily damaged parts and convenient replacement, reduces the frequency of later maintenance and overall costs.
Ice Cream Manufacturing Industry: Adapts to the large-scale needs of ice cream factories, customizing waffle cones/cones of various sizes to provide a crispy finish and enhance product competitiveness.
Frozen Food Industry: Supports rapid post-production connection of waffle cones to freezing equipment, locking in freshness and crispness, meeting the mass production and long-cycle storage needs of frozen food suppliers.
Snack Food Industry: Produces individually packaged crispy waffle cones, filled waffle cones, and other snacks, suitable for the mass production needs of food factories and catering to the retail scenarios of supermarkets and convenience stores.
Chain Catering and Dessert Industry: Provides standardized waffle cone supplies for chain ice cream shops and dessert shops, ensuring consistent taste and timely delivery, reducing self-production costs and operational difficulties for individual stores.
Baking and Specialty Food Industry: Offers flexible recipe and form adjustments to produce bowl-shaped cups, colored wafer waffle cones, etc., meeting the product innovation needs of bakeries and specialty candy shops.
Food Processing Industry: Meets the production standards for biscuits, to which egg rolls belong. Automated processes ensure efficient mass production and uniform quality, making it suitable for compliant production in large food processing plants.
What types of ice cream cones can your machine produce?
Our ice cream cone production lines are capable of manufacturing rolled ice cream cones, bowl-shaped cones, egg roll-style cones, and wafer-based ice cream cones.
What production line configurations do you offer?
We provide fully customized production line solutions, including standalone ice cream cone lines, integrated ice cream production systems, dairy-specific integrated lines, and combined ice cream machinery—all tailored to your specific requirements.
What additional auxiliary equipment can I select?
You can opt for supplementary equipment such as an automatic paper sleeving machine, an automatic counting system, and a storage platform.
Is an English manual provided for each piece of machinery?
Yes, we supply a complete set of English documents, including instruction manuals, test reports, and all other relevant technical data sheets.
Can my logo be printed on the machine?
Absolutely! We offer professional logo customization services to feature your brand on the equipment.
Do you provide machine customization services?
Yes, we specialize in customizing machinery based on your unique operational needs and specifications.
