METHENA’s bone grinder machine, with a daily production capacity of 1,000 tons, is suitable for grinding pork, beef, and chicken bones, and can also be used to grind vegetables and seafood.
Key attributes：
Condition:New
Power(w)：30KW
Warranty：1 Year
Voltage：380V 50HZ
Dimension(l*w*h)：1260*560*1200mm
Material：304 Stainless Steel
output：500-800KG/H
Weight：470KG
The industrial Bone Sauce Grinder shreds pork, fish, chicken, and cattle bones, then grinds them into a paste similar to sauces. The grinder's teeth are uniquely shaped and made with the highest hardness, resulting in a finer grinding process. It's widely used in industries like seasonings, pet food, and health supplements.
Parameter：
Item | Parameters | |||
Model | Sauce Grinding Machine-70 | Sauce Grinding Machine-85 | Sauce Grinding Machine-130 | Sauce Grinding Machine-180 |
Voltage | 220V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Motor Power | 3KW | 5.5KW | 11KW | 30KW |
Output | 60-80KG/H | 100-150KG/H | 200-300KG/H | 500-800KG/H |
Weight | 70KG | 170KG | 270KG | 470KG |
Dimensions | 650x320x650mm | 800x350x800mm | 1000x350x1000mm | 1260*560*1200mm |
Fine Grinding: Easy to operate: Plug in and start using the high-hardness grinding head, easily grinding materials to a fine finish.

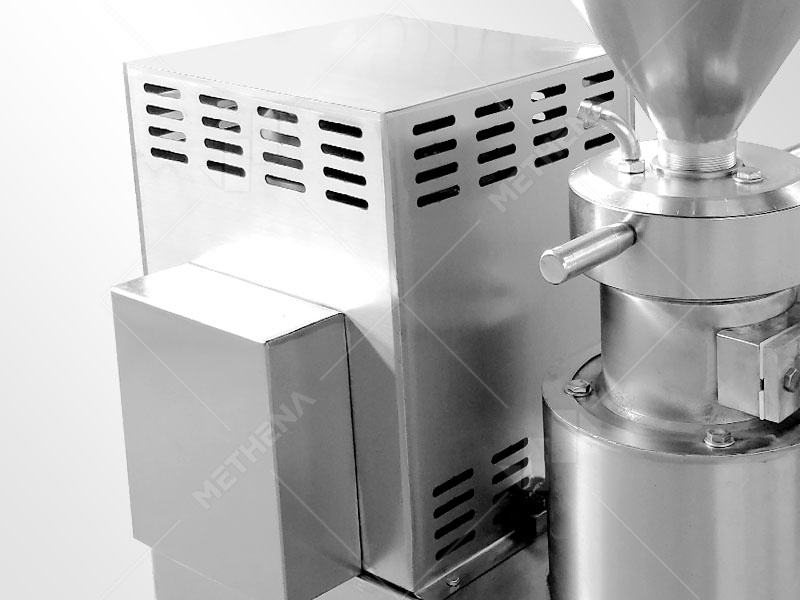

Compact Structure: Constructed of 304 stainless steel, the machine body features a compact design and continuous, stable operation.

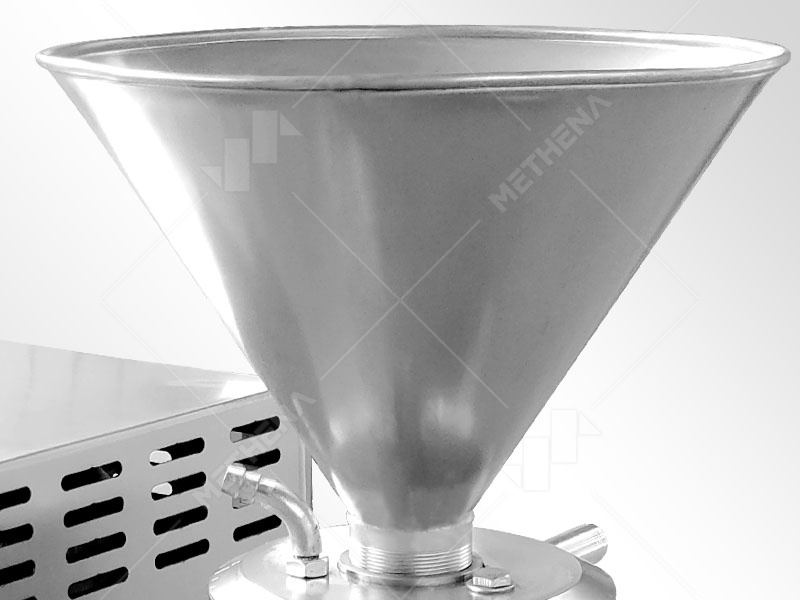

Easy Cleaning: The modular design allows for easy disassembly; simply unscrew and remove the hopper and other components, then wipe with a damp cloth.
Food Processing: Sauce grinders can be used to enhance the taste and flavor of coffee beans, spices, grains, nuts, and more.

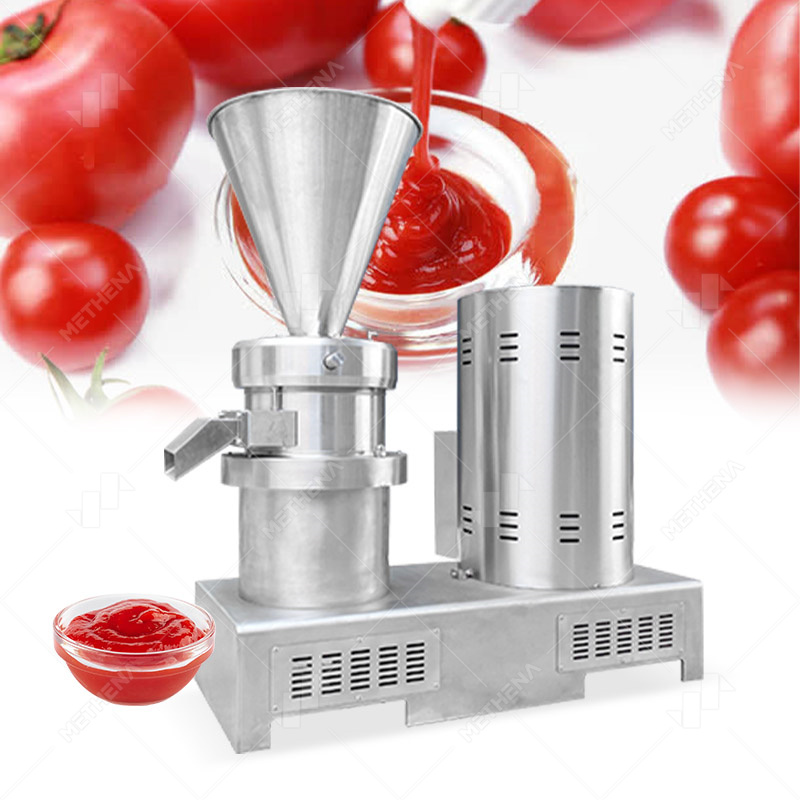

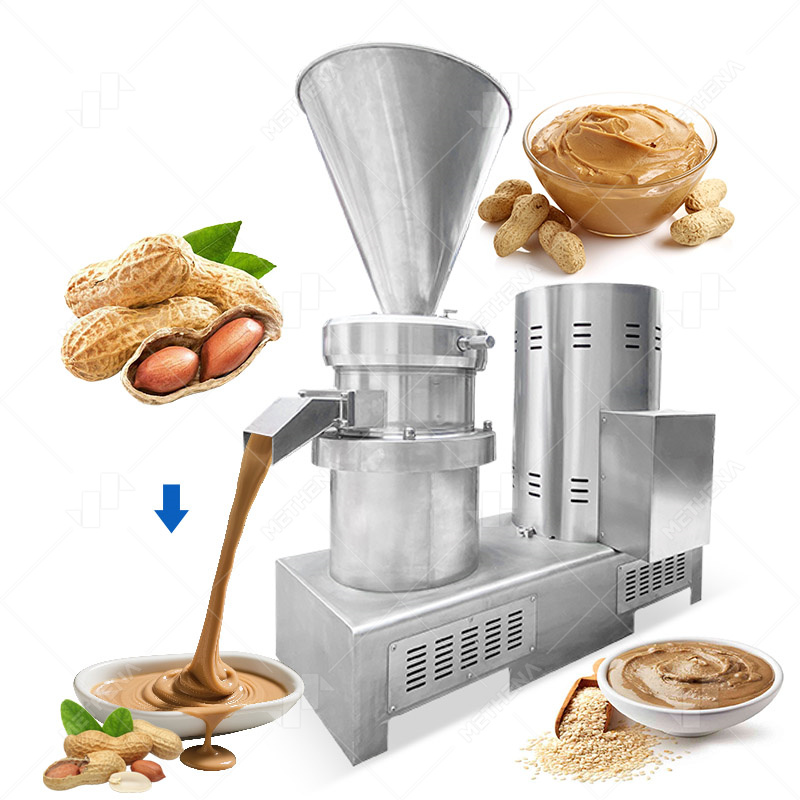

Sauce Grinding: From chili sauce to peanut butter, METHENA can grind to the required fineness for any sauce-related product.
Pet Industry: Pet snacks and dog food require grinders for bone and meat texture.
Machine Precautions：
1: First, check the power supply voltage of the sauce grinder and ensure the cables are connected correctly.
2: Before starting the machine, check all screws for looseness and ensure the connections are secure.
3: When starting the machine, switch to inching mode for slow operation. Once all problems are resolved, switch to automatic operation.
4: The machine requires regular maintenance, including inspection and lubrication of the gears.
5: After each grinding session, clean the machine, ensuring the power is off and wipe the surface with a damp cloth.
