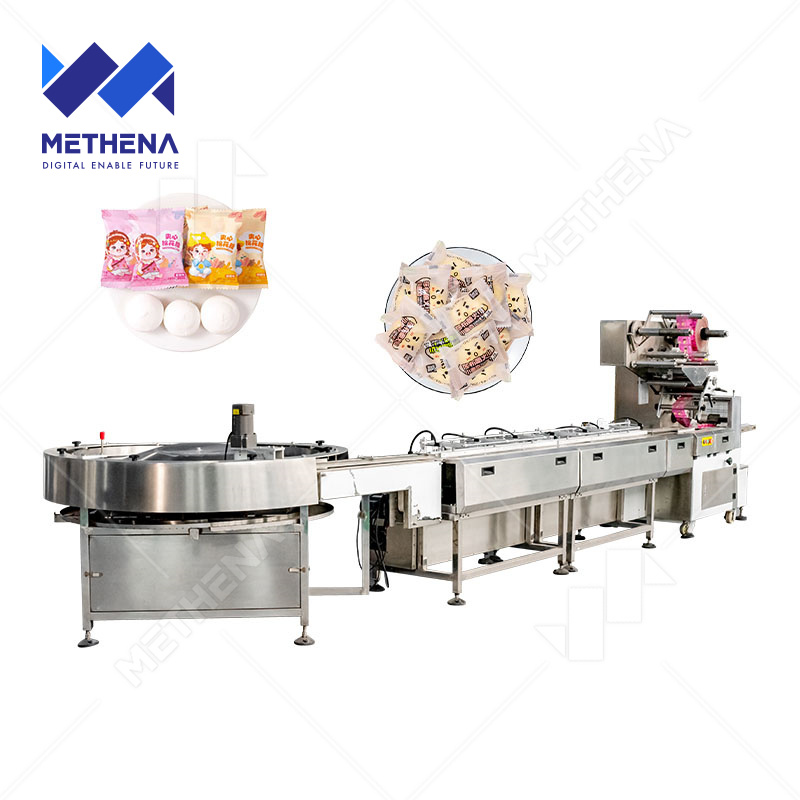

High-speed candy flat-bed pillow packaging machine, fully automatic gear-shaped production line, automatic material transportation packaging soft candy, chocolate and hard candy. Precise sealing, adjustable bag size.
Weight (KG)：600
automatic grade：Automatic
Warranty：1 Year
driven type：Electric
place of origin： Henan, China
brand name：METHENA
dimension(l*w*h)：3800*1350*1450mm
key selling points ：Multifunctional
Application：Food, Beverage, Commodity, Chemical, Candy/Chocolate bar/Energy bar
The candy pillow packing machine by OrangeMech/METHENA is a high-speed automatic pillow packing machine designed for precision packaging of gummies, chocolates, hard candies, and snacks. It adopts servo control and positioning stop function, simple transmission system, high-efficiency packaging, and customized packaging solutions for you!
| Model | METHENA-DZB6-3S160 |
| Packing speed | ≤500bag/min |
| Packing size | Length 45-80mm Width 60-110mm |
| Max film width | 140mm |
| Voltage | 220V 50/60HZ |
| Power | 6kw |
| Weight | 600kg |
| Dimensions | 3800*1350*1450mm |
VIDEO:
Feeding System:
Hopper + vibrating screen/sugar sorting tray, automatically sorts individual candies, removing connected or broken candies; compatible with multi-head scales or visual counting.
Film Feeding and Forming:
Automatic film tensioning + color mark tracking; the forming device folds the film into a U-shape; the longitudinal sealing roller completes the back longitudinal sealing, forming a continuous bag.
Filling Station:
Photoelectric + servo-driven candy pushing mechanism ensures candies enter the bag at the correct phase, eliminating empty bags.
Longitudinal Sealing Mechanism:
Continuously heated rollers or ultrasonic sealing; temperature independently controlled by PID; adaptable to PET/PE, OPP/CPP, aluminum-plastic films, etc.
Horizontal Sealing and Cutting:
Rotating horizontal sealing knife (or clamp type) completes top sealing + bottom sealing + cutting in the same cycle; knife temperature adjustable from 160–200 ℃, producing clean, burr-free cuts.
Electrical Control System:
Dual servo/frequency converter + PLC + touch screen; bag length can be set and cut instantly; automatic color mark tracking; positioning accuracy ±1 mm; 60 recipes stored; self-diagnostic function.
Space saving: The compact design of the equipment seamlessly connects to your workshop.
Simple maintenance: The equipment is a quick-disassembly structure, and the parts are easy to disassemble and clean, and maintenance and cleaning are very convenient.
Intelligent control: The PLC touch screen intelligently adjusts parameters online, and the feeding speed is easily controlled. The noise is low and the packaging quality is stable.
Candy: Soft candy, hard candy, chocolate marshmallow and other granular candies that require individual packaging can be applied.
Biscuits: Individually packaged biscuits, snack bars, especially oatmeal bars, energy bars and other block items are easy to package.
Nuts: Generally applicable to the industry, such as various small retail packages such as walnuts and macadamia nuts.
