Elevate your candies with this high-performance chocolate candy coating machine. Featuring precise temperature control and automatic spraying, it delivers a perfectly uniform, high-gloss finish for nuts, candies, and tablets.
Features: High Efficiency
OEM/ODM Service: Acceptable
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

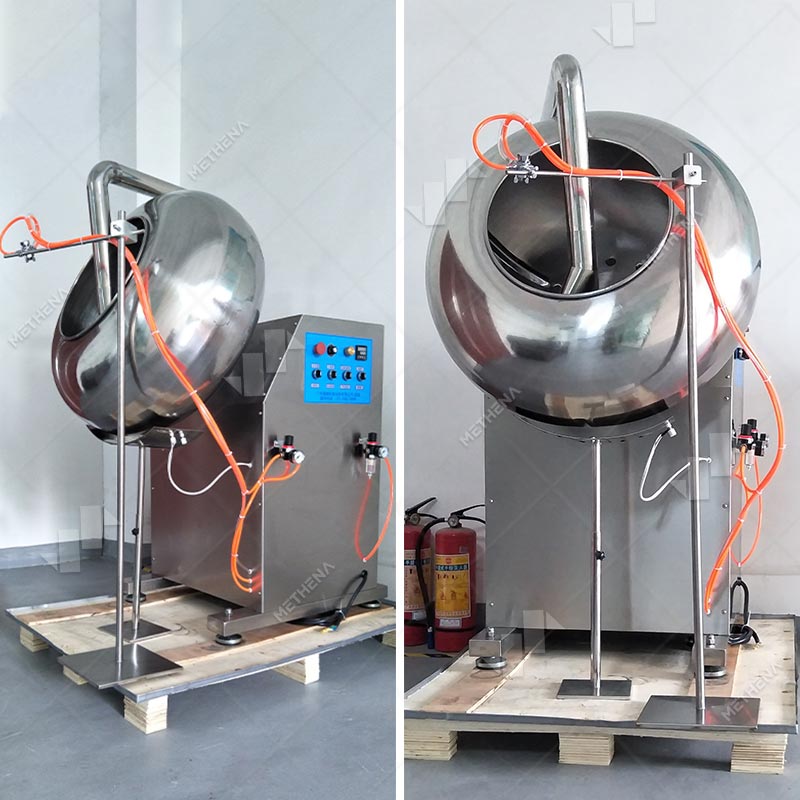

This high-performance candy coating machine is the ultimate solution for enhancing the appearance and quality of your sweets and chocolates. As a versatile chocolate candy coating machine, it integrates efficient coating, polishing, and mixing functions to ensure a high-gloss finish and perfectly uniform layers for nuts, chocolate beans, and various tablets.
Built with food-grade stainless steel, this candy coater machine features a precision automatic spraying system and dual internal/external heating technology, providing exceptional temperature control and adjustable rotating speeds to meet the specific needs of different materials. Whether you are an artisanal bakery or a high-capacity food processing plant, we have several premium candy coating machine for sale that guarantee stable, user-friendly operation to help your products stand out in a competitive market.
Parameter：

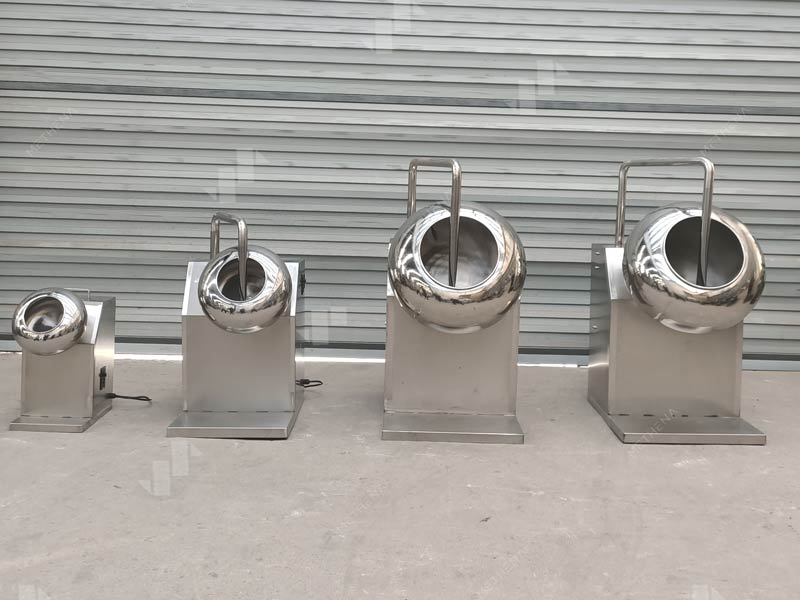

Name | MTN-400A | MTN-600A | MTN-800A | MTN-1000A | MTN-1250A |
Pot Diameter | 400mm | 600mm | 800mm | 1000mm | 1250mm |
Rotating Speed | 50r/min | ||||
Main Motor Power | 0.37kw | 0.75kw | 1.5kw | 2.2kw | |
Blower Power | 40w | 120w | 200w | 250w | 370w |
Heating Wire Power | 1kw | 2kw | 4kw | ||
Productivity | 2-5kg/batch | 8-15kg/batch | 30-50kg/batch | 50-70kg/batch | 80-150kg/batch |
Dimension | 770*670*840mm | 930*620*1140mm | 1100*800*1600mm | 1200*1200*1600mm | 1350*1350*1600mm |
Net Weight | 70kg | 120kg | 180kg | 260kg | 360kg |

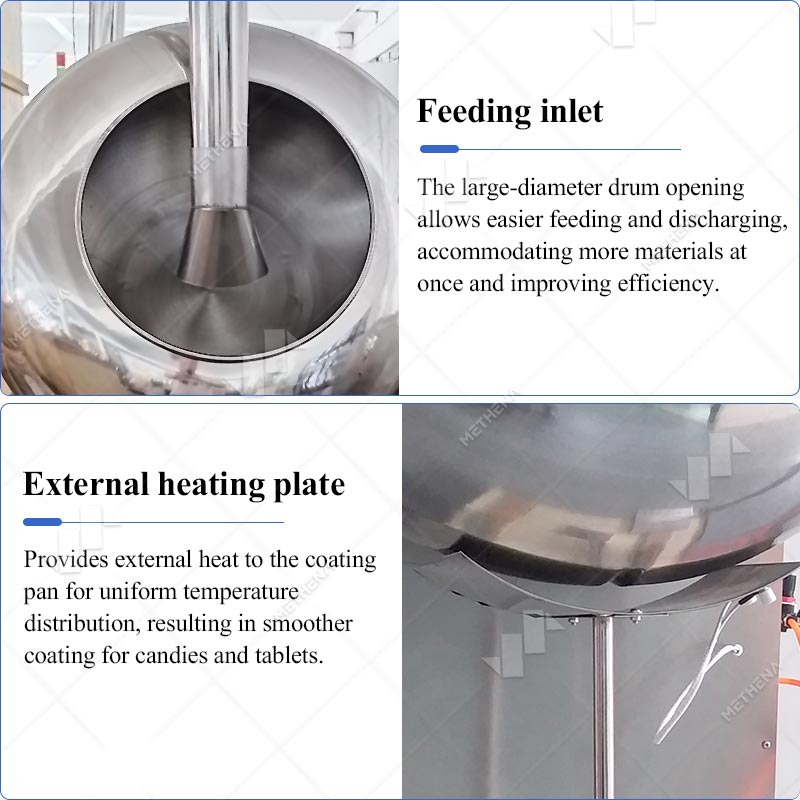

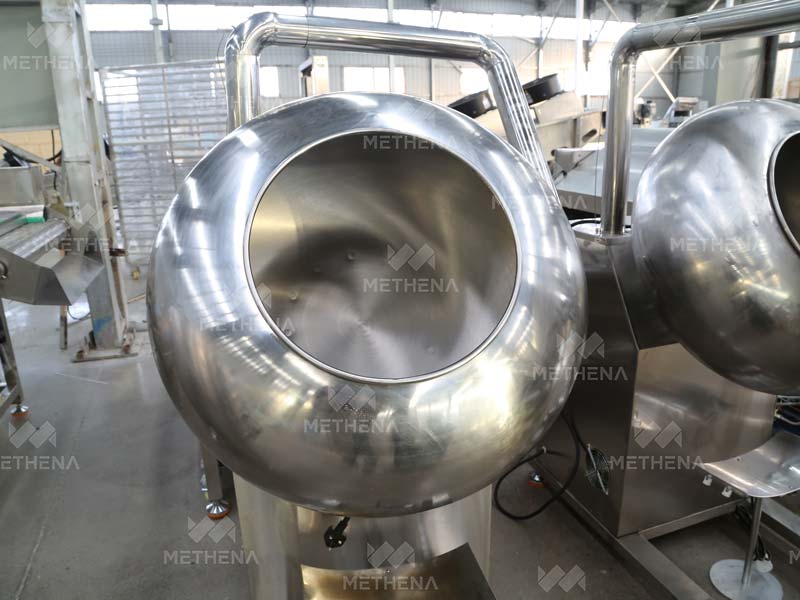

Loading Port: The wide-diameter drum opening streamlines the feeding and discharging process. Its high-capacity design allows for larger batch processing, significantly boosting operational efficiency.
External Heating Panel: This system provides consistent external thermal distribution to the coating pan. By maintaining a uniform temperature, it ensures that candies and tablets achieve a flawlessly smooth and professional finish.

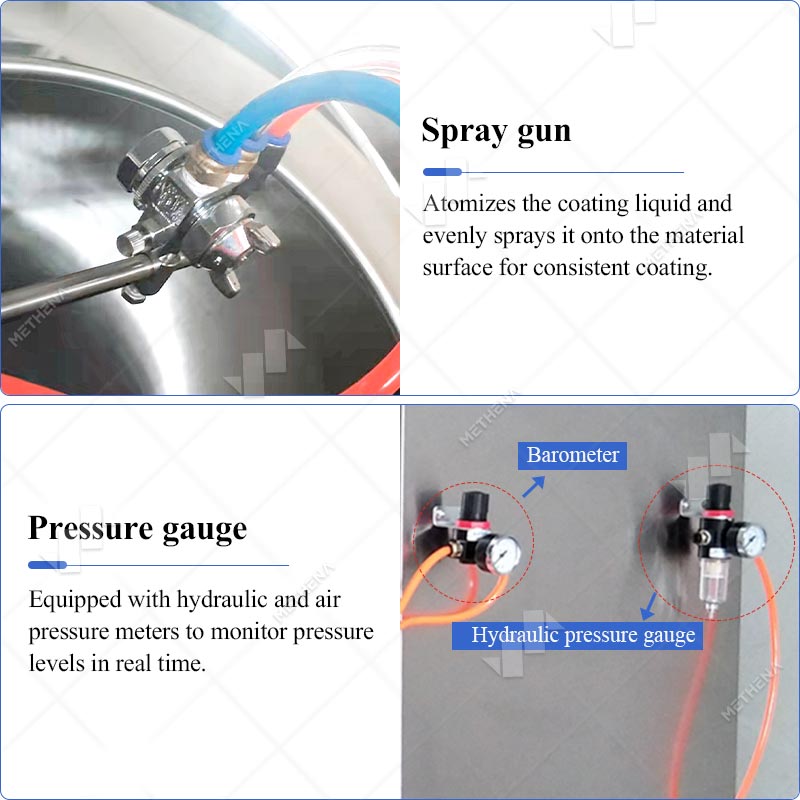

Atomizing Spray Gun: Engineered for high-precision atomization, the spray gun transforms the coating liquid into a fine mist, ensuring an even and consistent application across the entire surface of the materials.
Pressure Gauges: Integrated hydraulic and pneumatic monitoring systems allow for real-time tracking of pressure levels, ensuring process stability and optimal performance throughout the production cycle.
Uniform Coating Quality The advanced spraying and rotating systems ensure an even layer and a high-gloss finish for every product.
Precise Temperature Control Dual internal and external heating allows for stable thermal management to achieve optimal drying and polishing results.
High-Grade Material Construction Built with food-grade stainless steel, the machine offers exceptional durability, hygiene, and resistance to corrosion.
Versatile Speed Adjustment The variable frequency control allows users to easily customize the drum speed for different materials and coating thicknesses.
User-Friendly Operation The intuitive control panel and ergonomic design make the machine simple to operate with minimal training required.
Efficient Production Performance The high-capacity drum and automated systems significantly reduce labor costs while maximizing output and consistency.
Confectionery Production This machine provides an exquisite glossy finish and uniform sugar layers for various candies and sweets.
Chocolate Processing It is ideal for creating perfectly smooth and consistent chocolate coatings for nuts, biscuits, and dried fruits.
Snack Food Manufacturing This equipment efficiently applies seasonings, syrups, or honey glazes to a wide variety of savory and sweet snacks.
Pharmaceutical Industry It ensures precise and stable film or sugar coating for tablets and pills to meet strict health standards.
Nut and Seed Processing The machine offers high-speed coating and polishing for peanuts, almonds, and sunflower seeds with uniform results.
Health Supplement Production It is widely used for coating vitamins, herbal pellets, and nutritional capsules to improve taste and appearance.
