Cocoa bean processing line transforms raw cocoa beans into cocoa nibs, cocoa liquor, cocoa butter, or cocoa powder, providing efficient, continuous processing for chocolate factories, cocoa processors, and food ingredient manufacturers.
Key attributes：
Brand Name: METHENA
Warranty: 1 Year
Dimension(L*W*H): 23274mm*1600mm*2200mm
Voltage: 220v/380v Power: 139.77kw
Weight: 5130kg
Capacity: 100-500kg/h, as Requirements
Peeling Rate: ≥98%
Function: Cocoa Bean Processing
Core Components: PLC, Engine, Bearing, Gearbox, Motor
Automation Level: Full Automatic
OEM/ODM Service: Acceptable
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

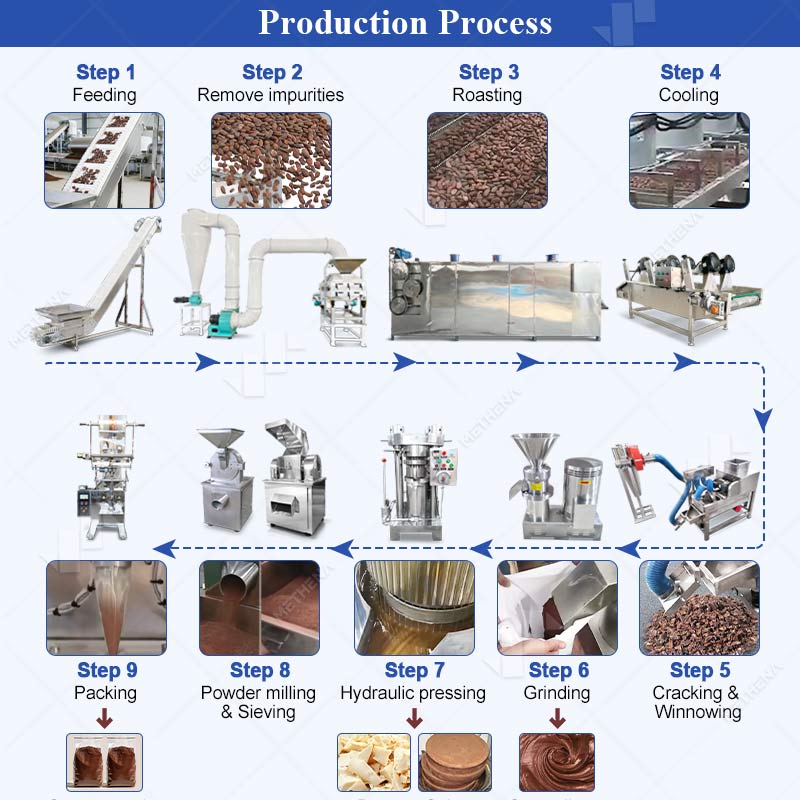

The cocoa bean processing line is an integrated industrial solution designed to convert raw cocoa beans into high-value products such as cocoa nibs, cocoa liquor, cocoa butter, and cocoa powder. This cocoa production line combines cleaning, roasting, cracking, grinding, pressing, and powder milling into a continuous and efficient process, ensuring stable product quality and controllable production parameters.
Equipped with advanced cocoa bean processing equipment, the system allows flexible adjustment of roasting profiles, grinding fineness, and pressing conditions to meet different production requirements. It can be configured as a cocoa powder production line or a cocoa liquor and butter processing system, making it widely suitable for chocolate factories, cocoa ingredient manufacturers, and food processing enterprises seeking reliable and scalable cocoa processing solutions.
Parameter：

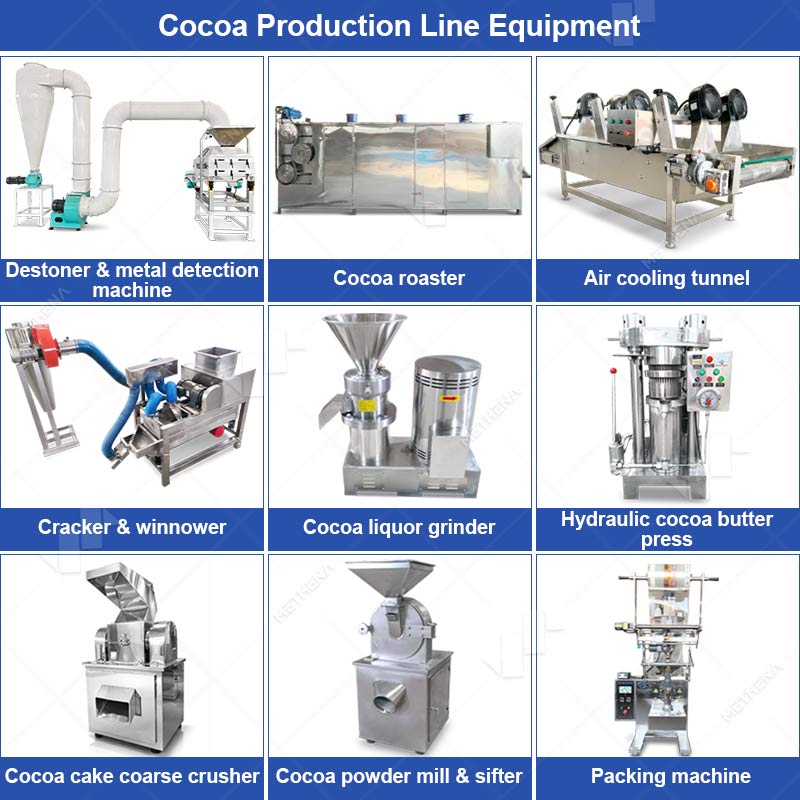

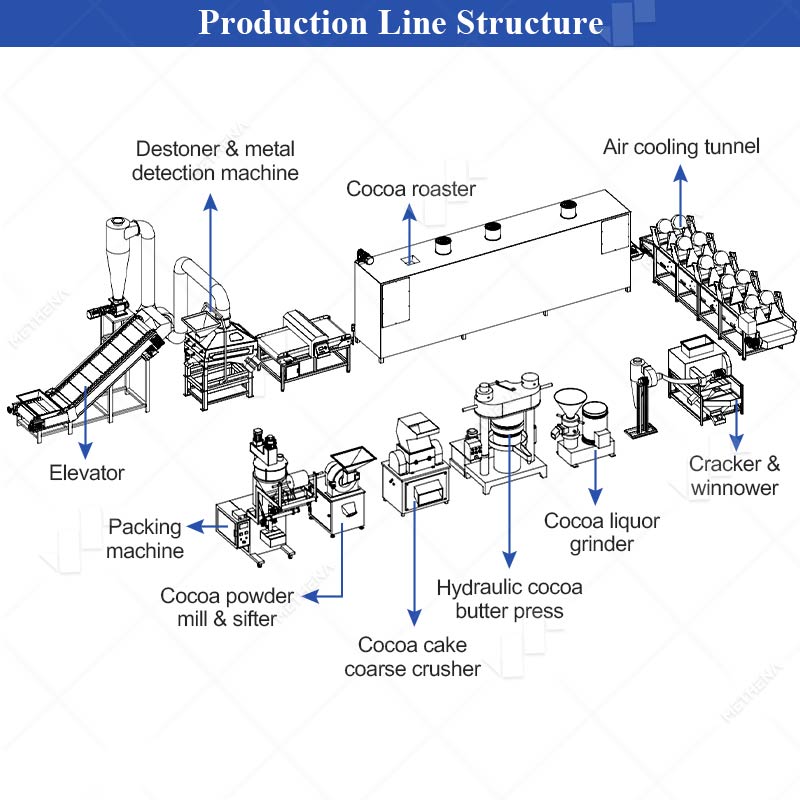

Machine Name | Voltage (V) | Power(kw) | Material | Weight | Size (mm) |

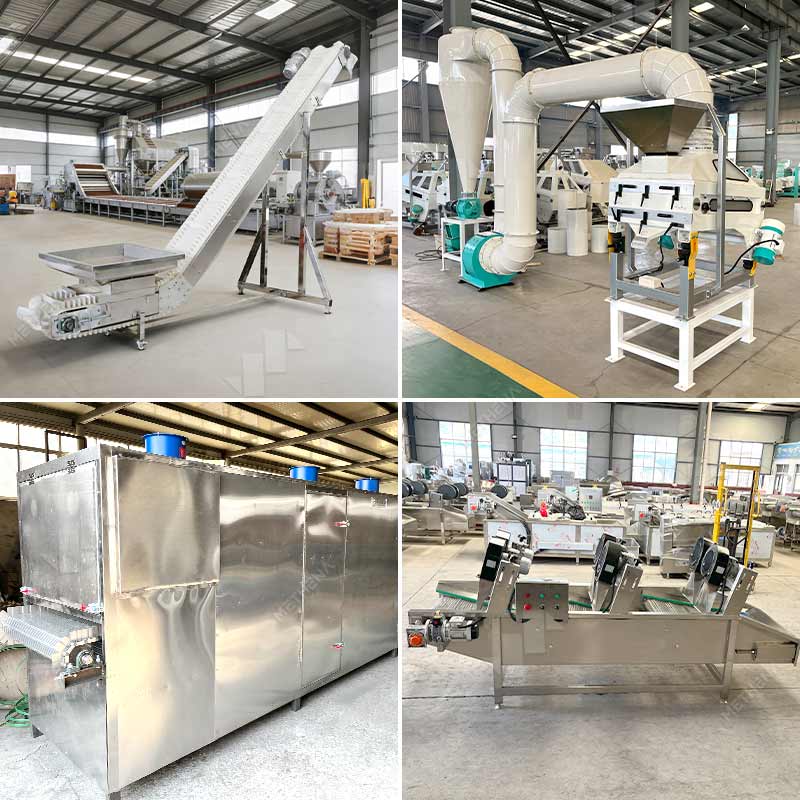

Elevator | 380v | 0.75kw | SUS304 Stainless Steel | 220kg | 4500×500×500mm |
Destoner and Impurity Removal Machine | 3.1kw | Carbon Steel | 280kg | 1500×1000×1600mm | |

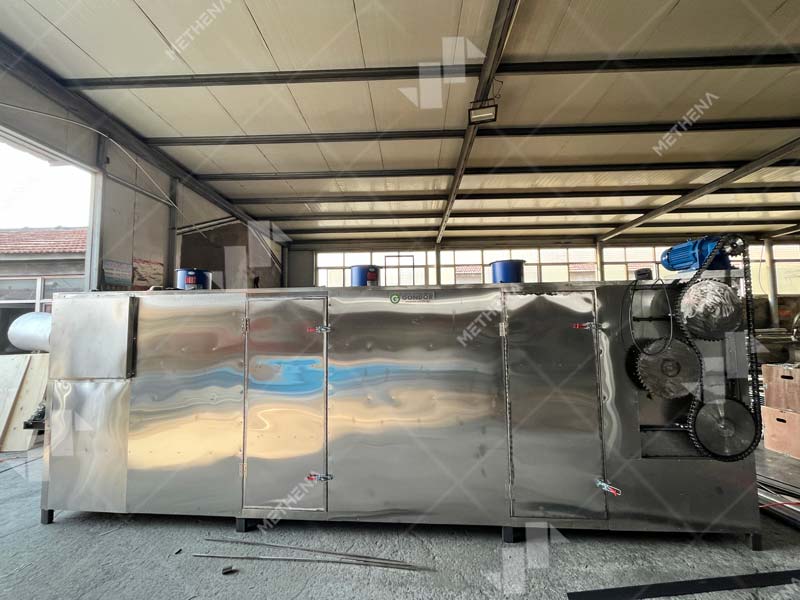

Roasting Machine | 90kw | SUS304 Stainless Steel | 1500kg | 6000×1600×2500mm | |
Cooling Tunnel | 4kw | 750kg | 5000×600×2200mm | ||
Crushing and Winnowing Machine | 1.12kw | 160kg | 1400×700×1400mm | ||
Colloid Mill | 18.5kw | 375kg | 1000×490×1100mm | ||
Hydraulic Press Machine | 1.1kw | 530kg | 800×650×1100mm | ||
Coarse Crusher | 15kw | 850kg | 1050×1150×1450mm | ||

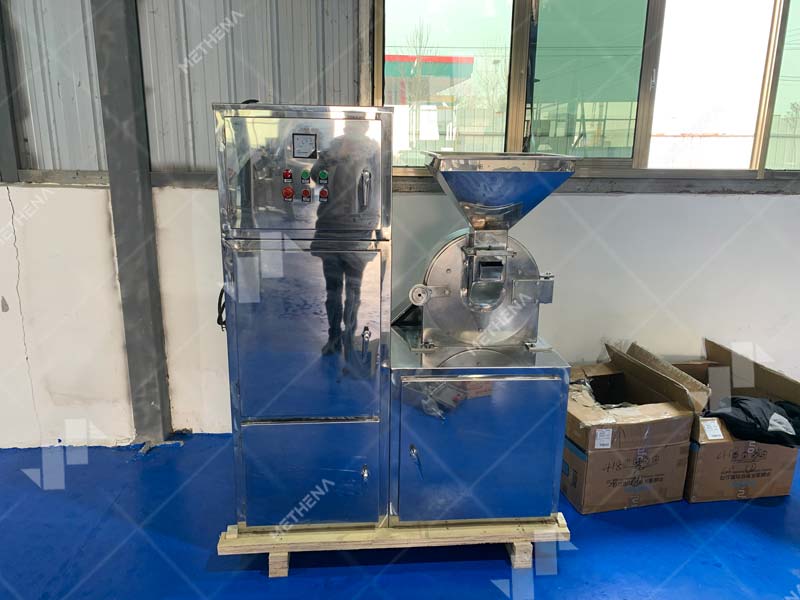

Powder Grinding Machine | 4kw | 100kg | 600×500×1170mm | ||
Packaging Machine | 220V | 2.2kw | 365kg | 1424×980×1343mm |
High AutomationThe production line integrates conveying, roasting, grinding, pressing, and packaging to achieve continuous automated production, reducing labor costs and improving overall efficiency.
Stable Product QualityPrecise control of roasting temperature, grinding fineness, and pressing parameters ensures consistent flavor, uniform particle size, and stable product specifications.
Efficient Raw Material CleaningEquipped with destoning and impurity removal systems to eliminate stones, dust, and metal contaminants, improving raw material purity and protecting downstream equipment.
Flexible Production ConfigurationThe line can produce cocoa nibs, cocoa liquor, cocoa butter, and cocoa powder, allowing manufacturers to adjust processing stages according to product plans.
Food-Grade Hygienic DesignAll product-contact parts are made of food-grade stainless steel, ensuring safe processing while making cleaning and maintenance easier.
Reliable Industrial PerformanceHeavy-duty equipment and optimized process flow support stable long-term operation, making the line suitable for chocolate factories, cocoa processors, and food ingredient producers.
Chocolate Manufacturing IndustryUsed by chocolate factories to process cocoa beans into cocoa liquor, cocoa butter, and cocoa powder as key chocolate ingredients.
Cocoa Processing IndustrySuitable for professional cocoa processing plants producing cocoa nibs, cocoa powder, and cocoa butter.
Food Ingredient IndustryProvides stable cocoa ingredients for food manufacturers used in bakery, beverage, and dessert production.
Snack Food IndustrySupports the production of cocoa powder and nibs used in candies, biscuits, and various snack products.
Bakery IndustrySupplies cocoa powder and cocoa butter for cakes, breads, pastries, and chocolate-flavored baked goods.
Food Processing IndustrySuitable for food processing enterprises requiring cocoa raw materials for diversified food production.
