Key attributes：
Power(Kw)：2.2
Voltage：220v/380v
Feeding Size (mm): 10 - 100 mm(0.39-3.94in)
Material：SUS304, SUS304L, SUS316, SUS316L, Ti, Other
Output Size (Mesh)：12 - 120 mesh
Range of Spindle Speed(R.P.M)：2400 - 6000 r.p.m
Type: Pulverizer
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

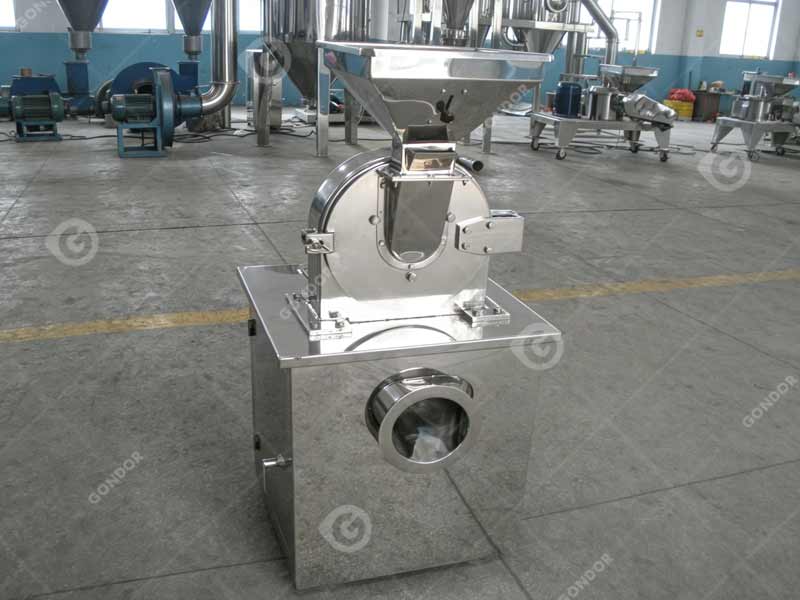

In industrial manufacturing, the industrial powder grinder machine is the key equipment to realize high-quality products. The micron fineness and uniformity of its output are the core indexes that determine the performance of finished products, and it is suitable for fine grinding of seasonings, chemical raw materials, Chinese herbal medicines, and other materials.

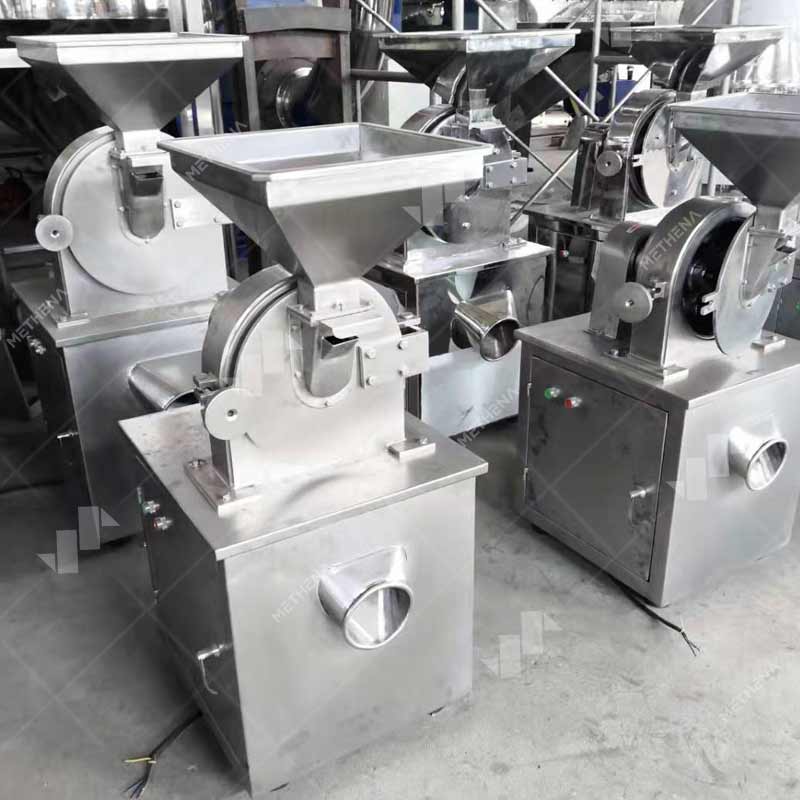

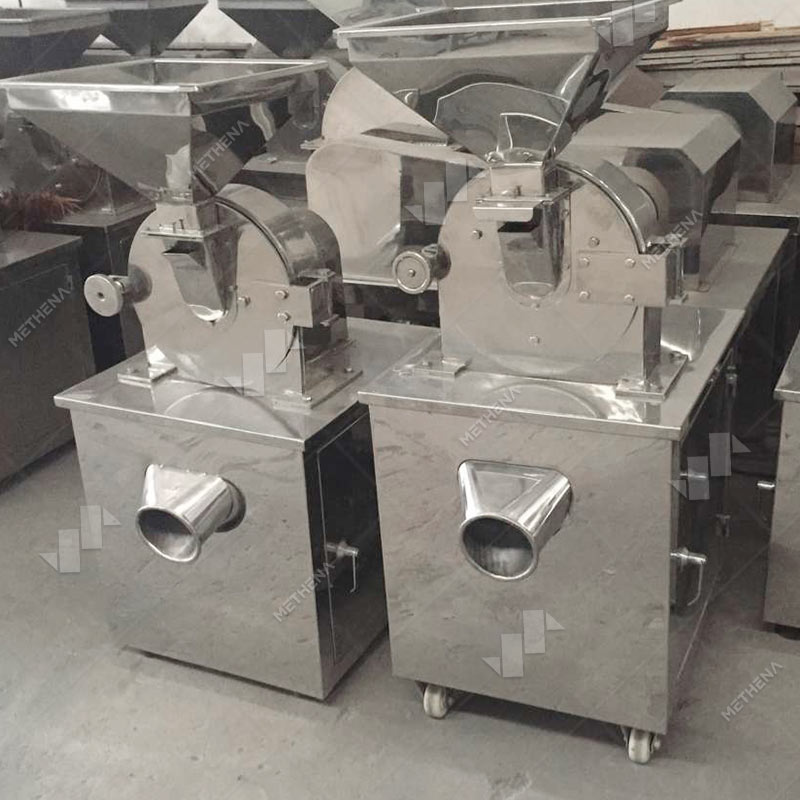

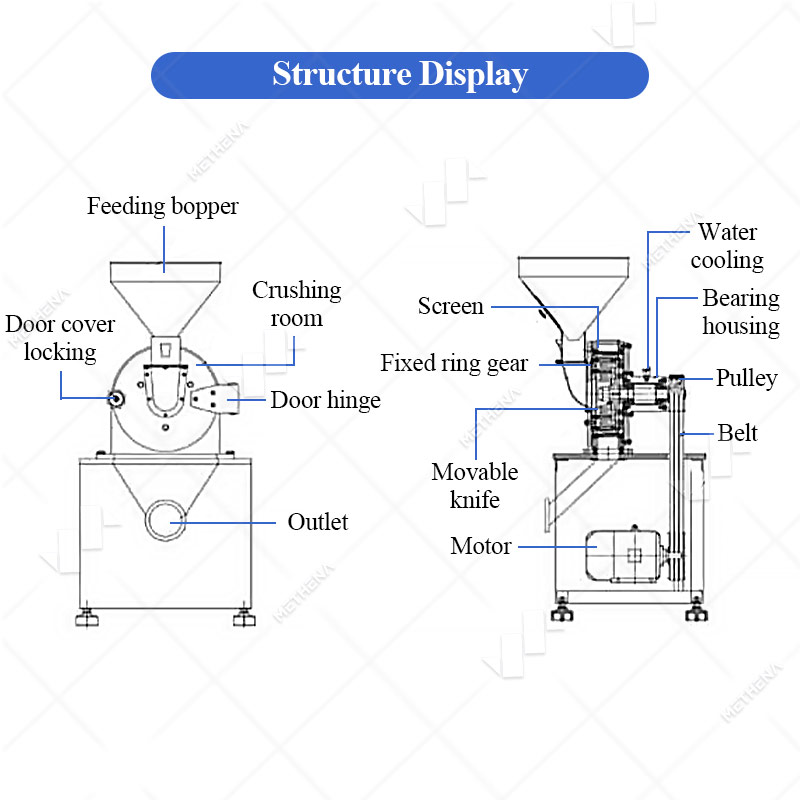

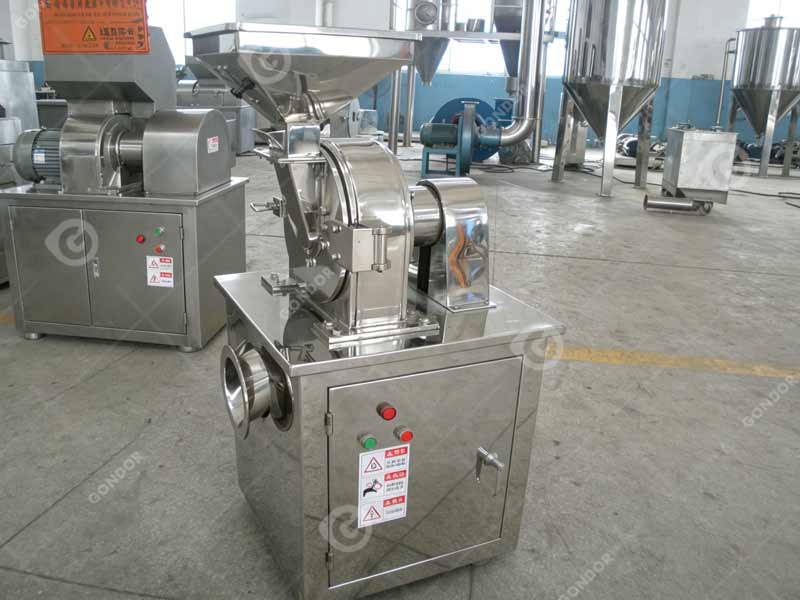

The powder mill is specially designed to efficiently convert dry and hard solid materials into fine powder. Its "omnipotence" lies in that it can flexibly adjust the internal crushing structure according to the material characteristics. The equipment is made of food-grade stainless steel, which meets the strict hygiene standards. Through the high-speed impact, shearing, and friction between toothed discs, the rapid and uniform crushing effect is realized.
| Model | Capacity(kg/h) | Feed Particle Size(mm) | Crushing Fineness(mesh) | Motor Power(kw) | Spindle Speed (r/min) | Dimension (mm) | Weight (kg) |
| 15B | 20-150 | <10 | 20-120 | 2.2 | 6000 | 550*400*850 | 150 |
| 20B | 40-200 | <10 | 20-120 | 4 | 4500 | 600*550*1250 | 280 |
| 30B | 80-400 | < 12 | 20-120 | 7.5 | 3800 | 700*600*1450 | 340 |
| 40B | 100-800 | < 15 | 20-120 | 11 | 3400 | 900*800*1550 | 450 |
| 50B | 150-1000 | <18 | 20-120 | 15 | 3000 | 1050*850*1750 | 600 |
| 60B | 250-1500 | < 20 | 20-120 | 22 | 2800 | 1100*900*1880 | 900 |
| 80B | 350-2000 | < 25 | 20-120 | 30 | 2400 | 1200*950*2000 | 1250 |
| 100B | 500-3000 | < 28 | 20-120 | 37 | 2000 | 1350*1000*2100 | 1580 |

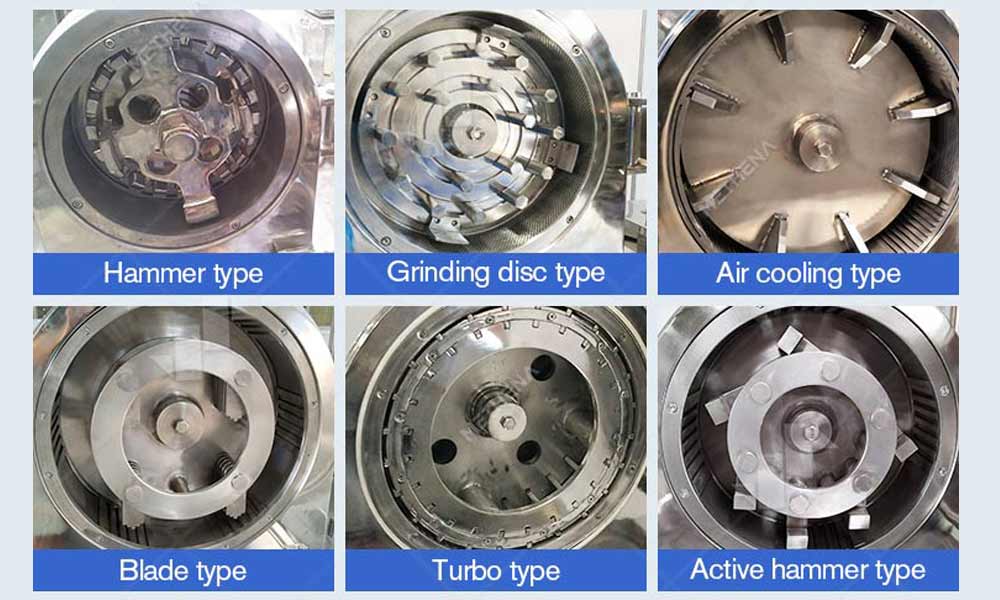

Toothed Disc: Suitable for crystals, spices, etc., with low temperature rise and original flavor.
Hammer Type: Suitable for materials with many fibers and high hardness, with high-speed impact and strong crushing power.
Cross Hammer Toothed Disc Combination: A combination of shearing and impact, three-dimensional composite crushing, suitable for complex materials with a high sieving rate.
Direct Connection Standard Type: Compact structure, small occupied space, suitable for materials with less dust generation, ready to use.
Pulse Dust Removal Unit: Integrated pulse-vacuum dust removal system ensures a clean, dust-free production environment and improves work safety and efficiency, making it the first choice for modern factories.
Cyclone Dust Removal Unit: Equipped with a cyclone separator, suitable for production scenes that need continuous discharge and have moderate requirements for dust removal.
Temperature Control Protection: An optional water cooling system can control the temperature rise of crushing and protect the activity of heat-sensitive materials.

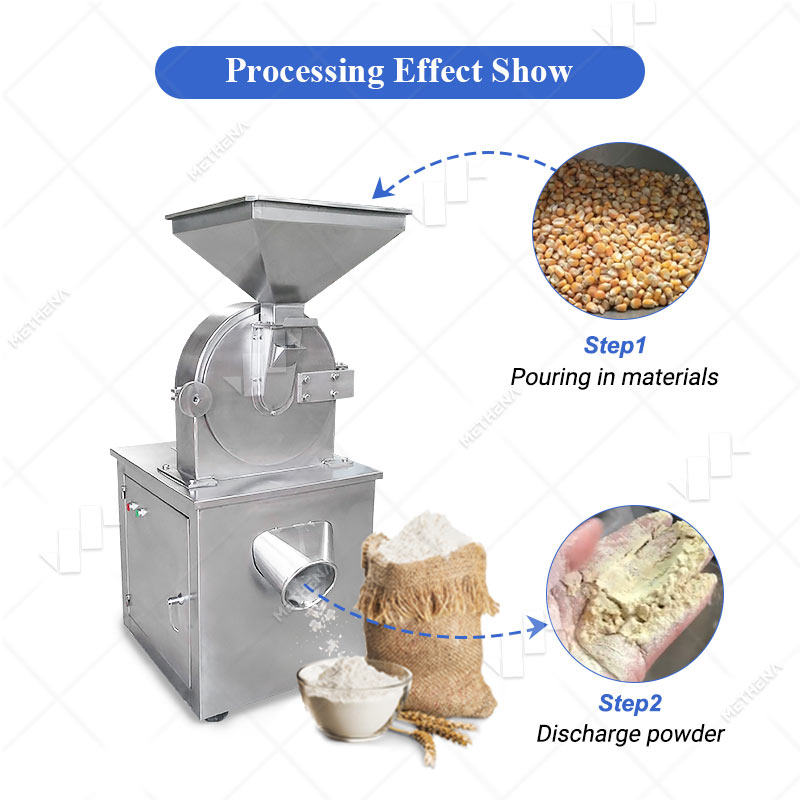

Efficient Feeding: Wide hopper and adjustable gate, anti-blocking, stable flow, and stable motor load.
Smooth Discharge: The discharge port is polished to a mirror finish to reduce residual wall hang-up and ensure continuous, smooth transportation.
Adjustable Fineness: You can easily switch from coarse powder of 20 meshes to fine powder of 120 meshes by replacing the buckle screen with different meshes.
Energy Efficiency: High-torque motors are precisely calibrated to provide maximum impact with minimum energy consumption and reduce long-term operating costs.
Smooth Operation: Low center of gravity design and dynamic balance rotor mean lower vibration. This prolongs the service life of the bearing and reduces the noise pollution in the workshop.

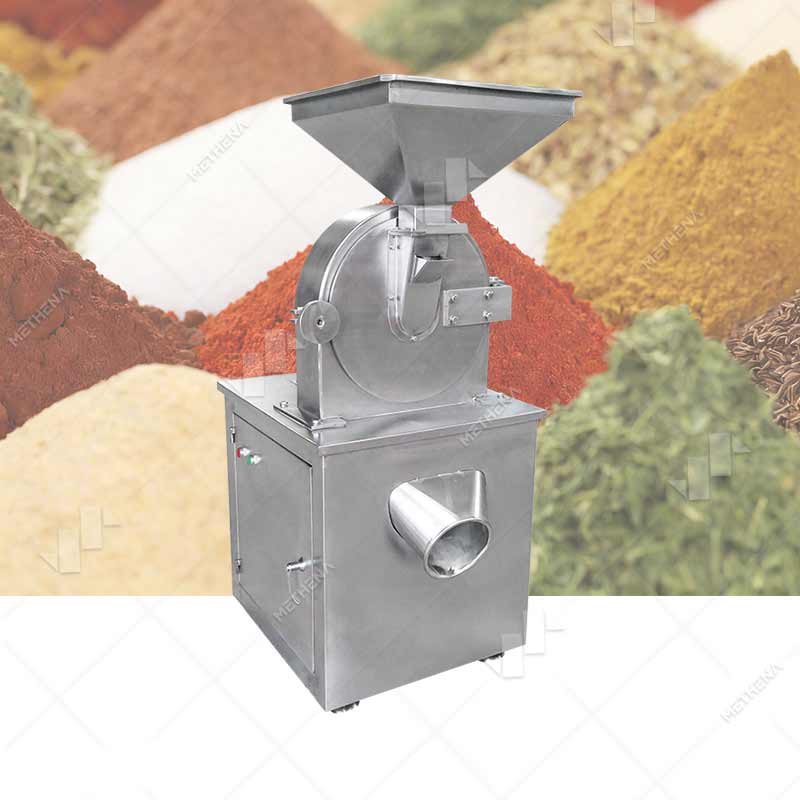

Food and Condiments: From turmeric in India to pepper in Mexico, the device can handle it easily. It is also an essential tool for a candy factory to process powdered sugar.
Chemical Industry: Processing ore samples or chemical raw materials requires corrosion-resistant machines. 304 stainless steel ensures that there will be no chemical reaction between equipment and materials.
Agriculture and Cereals: Processing dried corn, soybeans or Chinese herbal medicines into feed or supplements requires extremely high yield. Our equipment is designed for the 24/7 continuous operation required by these industries.
