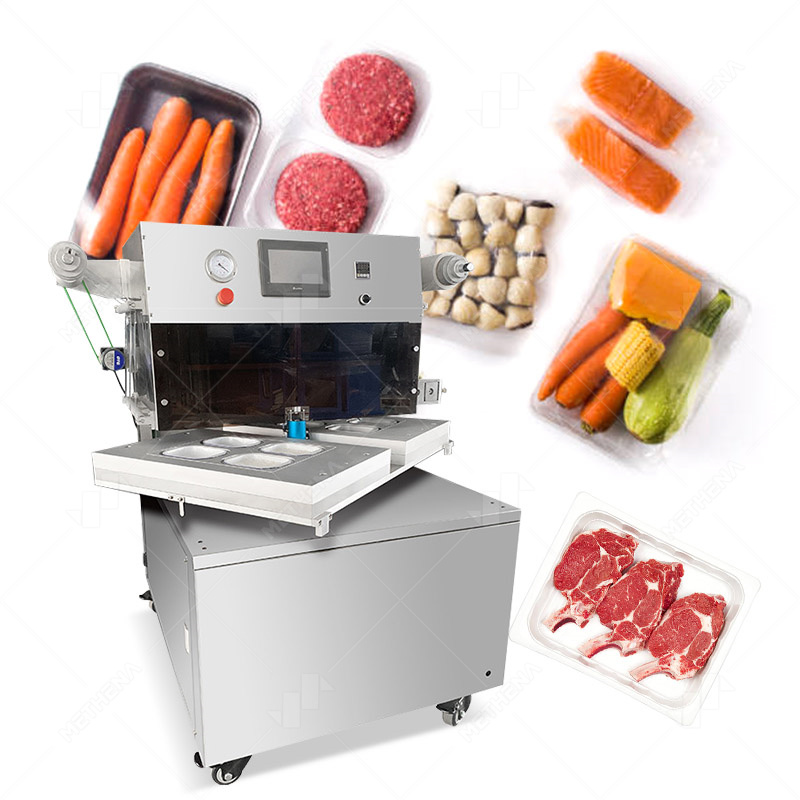

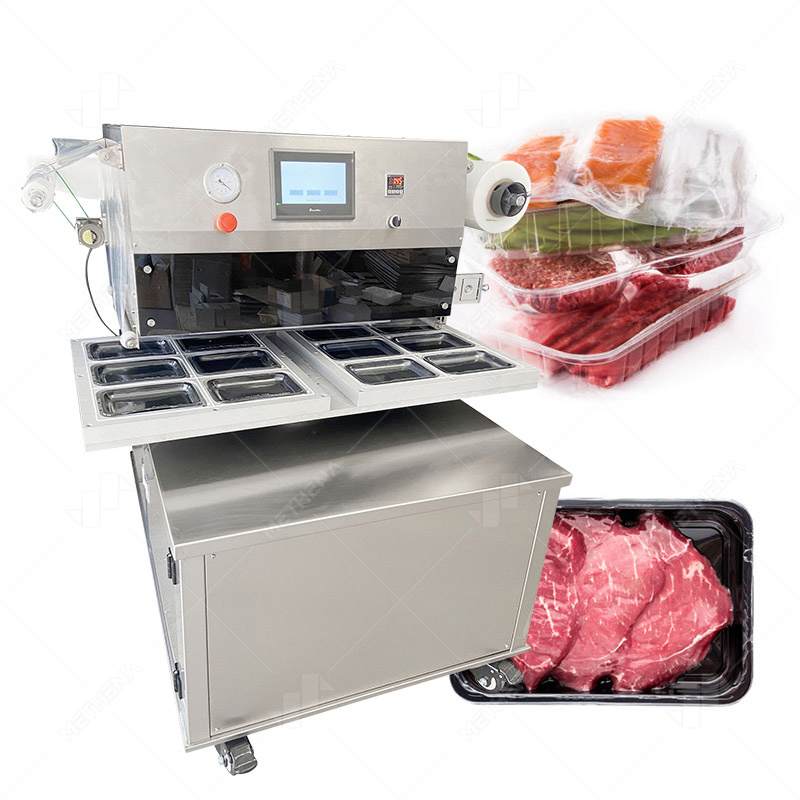

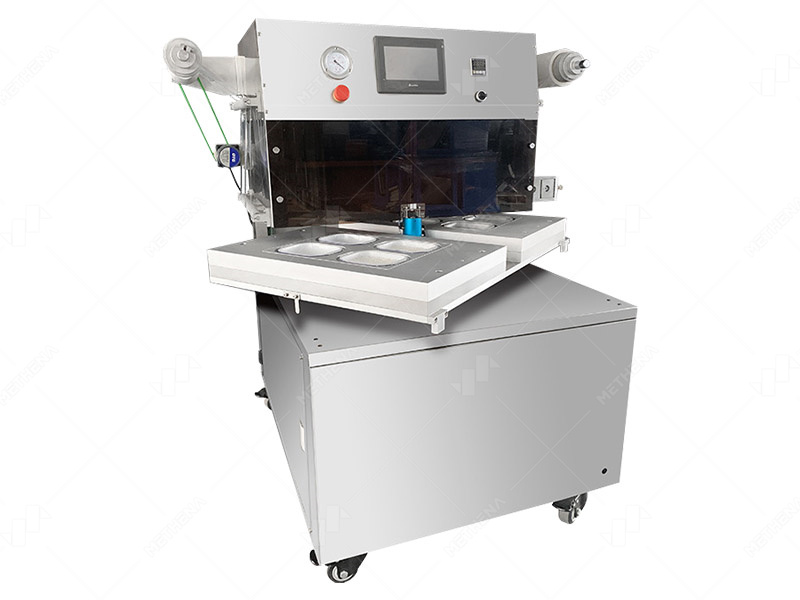

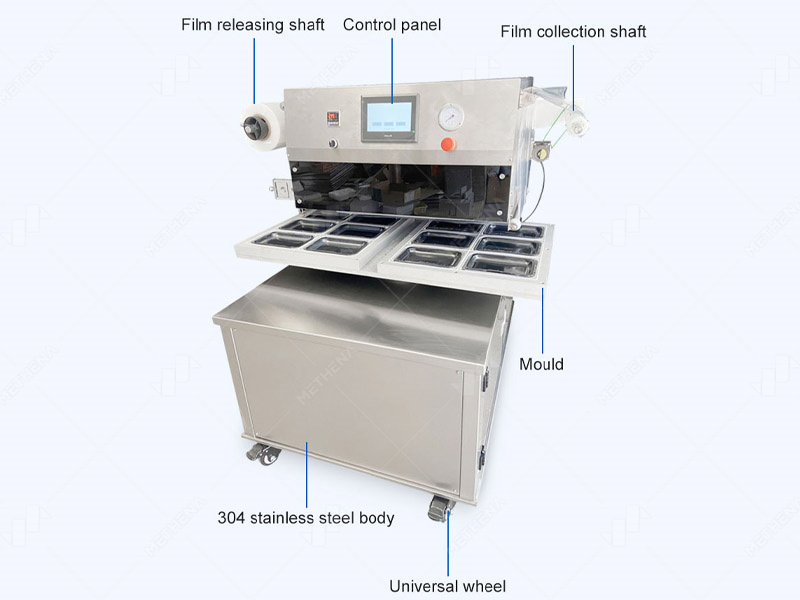

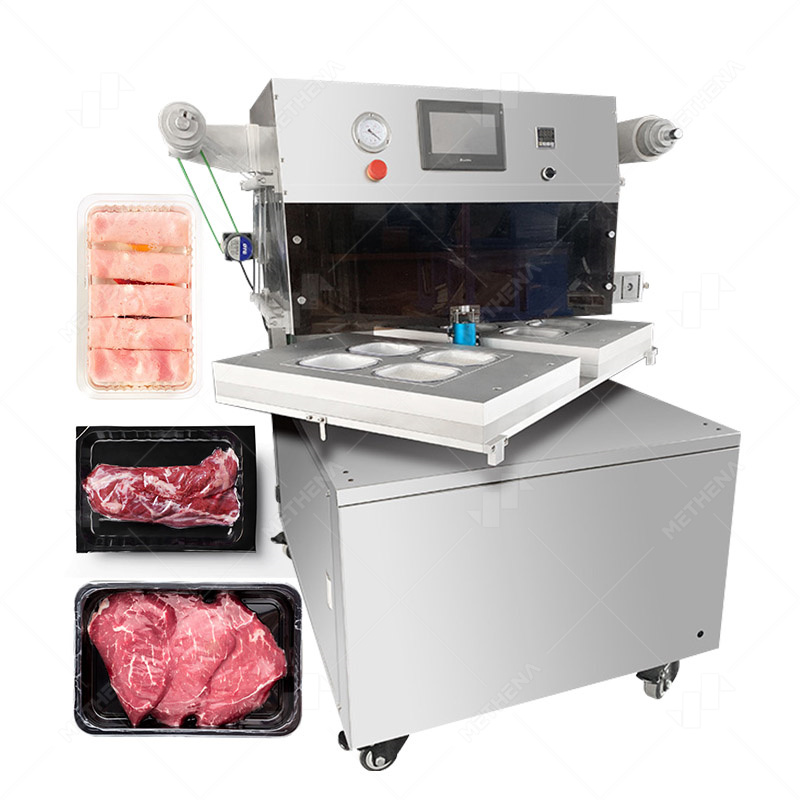

Modified atmosphere packaging machine (MAP) is a process of preserving food by vacuuming the tray and injecting nitrogen and mixed gas into the sealed tray to extend the shelf life.
Key attributes：
Condition ：New
Warranty ：1 Year
Place of origin ：Henan, China
Brand name ：METHENA
Pressure ：0.6-0.8Mpa
weight ： 260KG
dimension(l*w*h) ：1200*1050*1350mm
Suitable material： PP/PE/PET/PS
Control model：Electric and pneumatic
Gas systerm：nitrogen and mixed gas
Voltage：110v/220v/380V 50/60HZ (Customized)

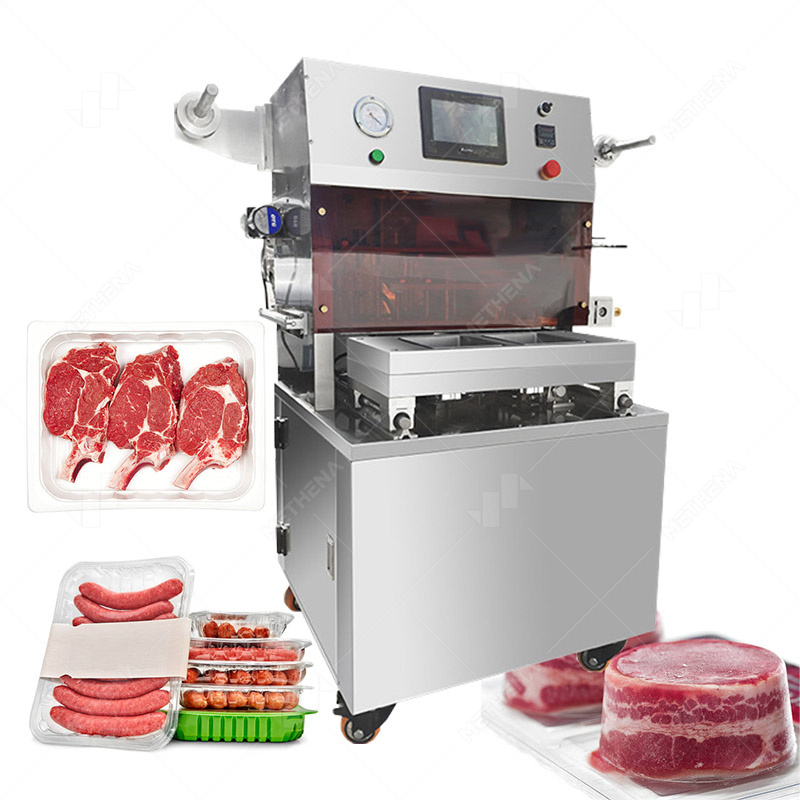

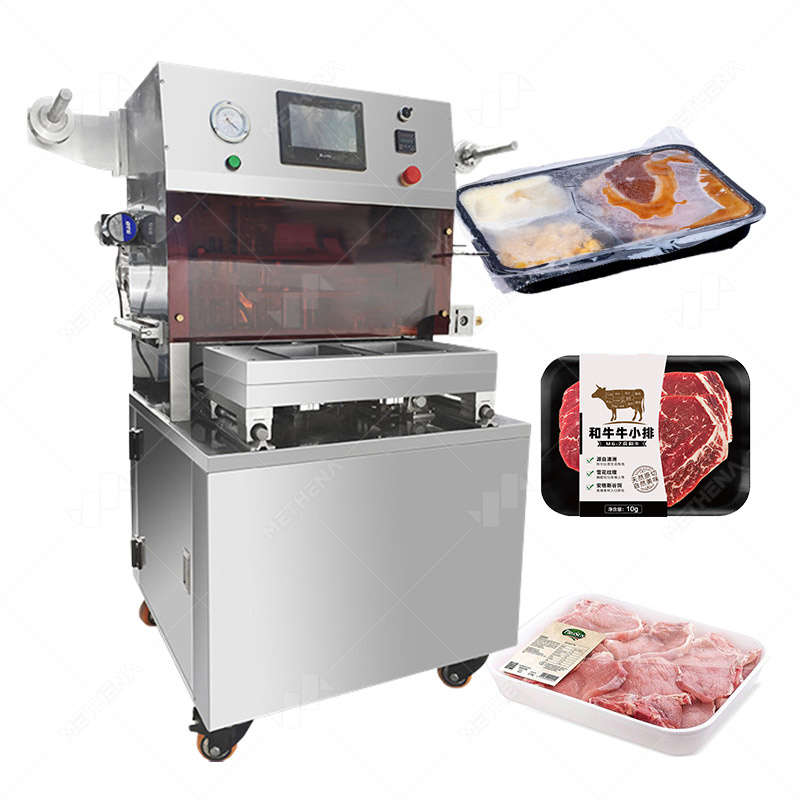

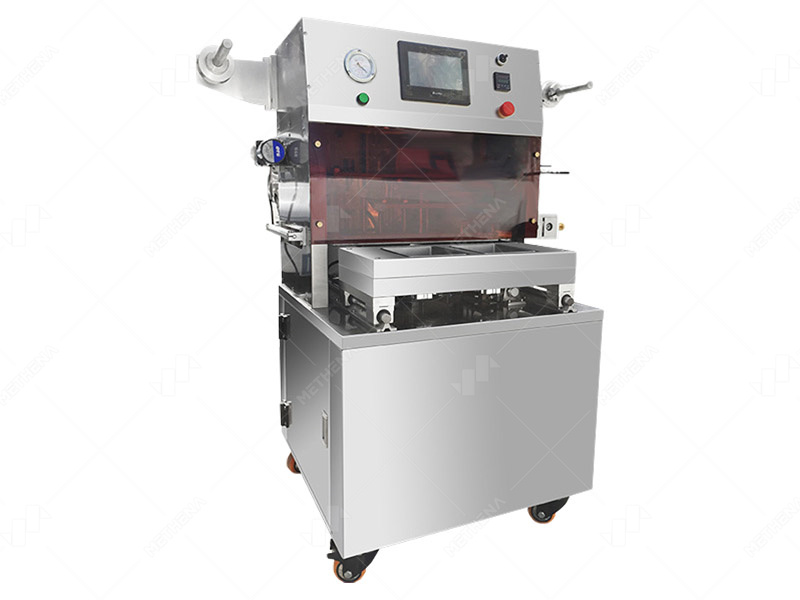

The modified atmosphere packaging machine (MAP) is an advanced sealing machine for food packaging, designed to extend shelf life by replacing oxygen with nitrogen or Mixed gas. Ideal for fresh, frozen, and ready-to-eat foods, it ensures optimal freshness and prevents spoilage. Compact and efficient, it’s perfect for SMEs and large-scale producers.
VIDEO:

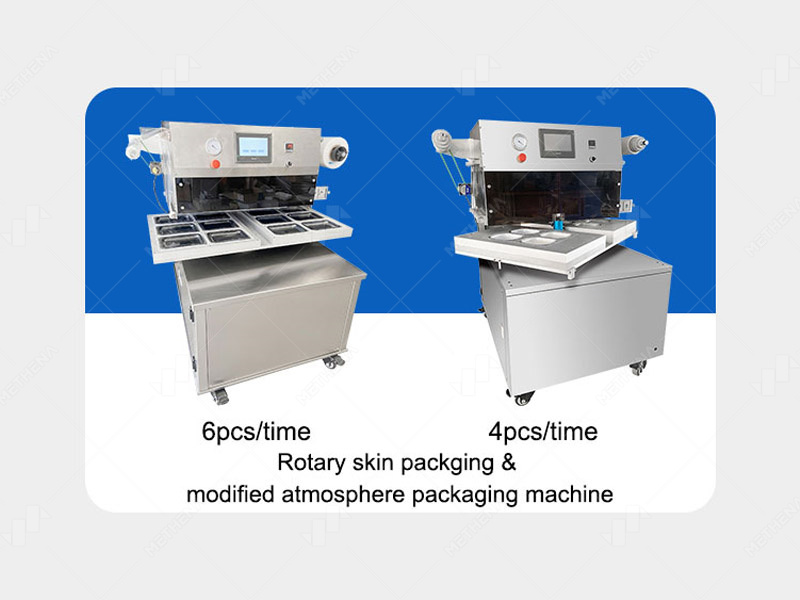

Model | METHENA-MAP-2/4/6 | Model | METHENA-RMAP-2/4/6 |

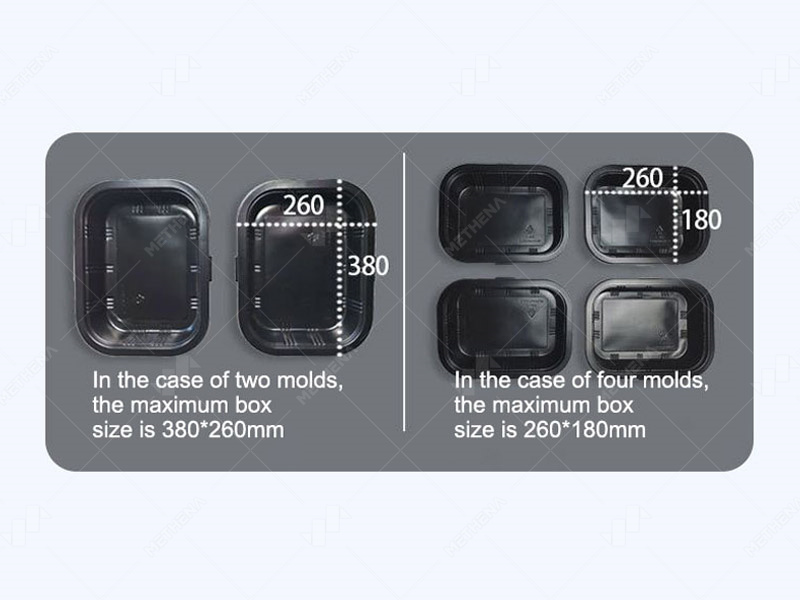

Tray size | Customized | Tray size | Customized |
Packing speed | 3-4pcs/min | Packing speed | 4-5pcs/min |
Control mode | electric and pneumatic | Control mode | electric and pneumatic |
Gas type | Nitrogen or mixed gas | Gas type | Nitrogen or mixed gas |
Suitable material | PP/PE/PET/PS | Suitable material | PP/PE/PET/PS |
Film width | 440mm | Film width | 440mm |
Pressure | 0.6-0.8mpa | Pressure | 0.6-0.8mpa |
Voltage | AC 110V/220V/380V 50/60Hz | Voltage | AC 110V/220V/380V 50/60Hz |
Power | 2-3kw | Power | 3kw |
Weight | 300kg | Weight | 300kg |
Dimension | 1200*1050*1350mm | Dimension | 1200*1050*1350mm |

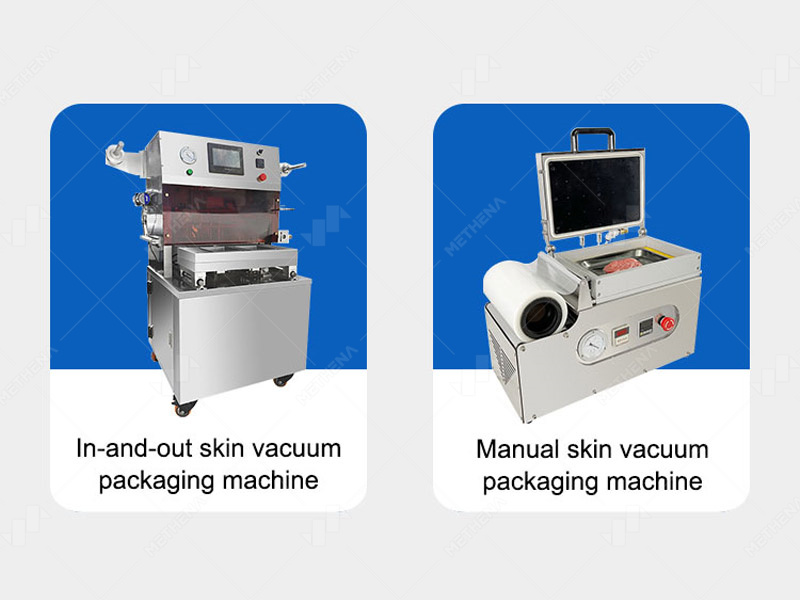

Model | METHENA-VSP-2/4/6 | Model | METHENA-RVSP-2/4/6 |
Tray size | Customized | Tray size | Customized |
Packing speed | 3-4pcs/min | Packing speed | 3-4pcs/min |
Control mode | electric and pneumatic | Control mode | electric and pneumatic |
Suitable material | PP/PE/PET/PS | Suitable material | PP/PE/PET/PS |
Pressure | 0.6-0.8mpa | Pressure | 0.6-0.8mpa |
Voltage | AC 110V/220V/380V 50/60Hz | Voltage | AC 110V/220V/380V 50/60Hz |
Power | 1.5kw | Power | 1.5kw |
Weight | 300kg | Weight | 300kg |
Dimension | 1140*1190*1420mm | Dimension | 1140*1190*1420mm |

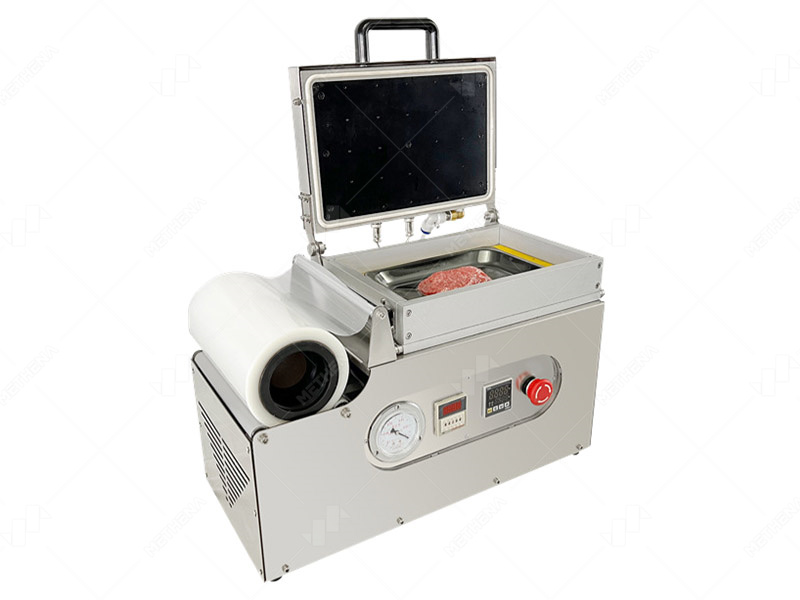

Model | METHENA-SP-220/330 |
Tray size | 300*190*50mm/420*300*60mm |
Packing speed | 2-3pcs/min |
Control mode | electric |
Voltage | 110V/220V 50/60Hz |
Power | 1.5kw/2kw |
Weight | 31kg/63kg |
Dimension | 530*240*360mm/660*350*460mm |
Extend the shelf life - METHENA’S modified atmosphere packaging machine can extend the shelf life of fresh food by 3-5 times by extracting the vacuum in the tray and injecting nitrogen or mixed gas. It is especially suitable for modified atmosphere packaging of frozen food and fresh products.
Reduce food waste - Vacuum deoxygenation technology inhibits food oxidation and deterioration and bacterial growth from the root. Tests have shown that it can reduce food loss rate by more than 35%, significantly reduce waste caused by deterioration, and save you a lot of costs.
Improve product appearance - Perfect sealing system, smooth packaging, transparent PP/PE/PET/PS material, good perspective, with your customized packaging design, the product display effect is significantly improved, attracting more consumers and increasing profits.
Ready-to-eat food and pre-prepared food packaging: Suitable for retail pre-packaged ready-to-eat meals, salads, cooked food, etc., simplifying the production process and ensuring freshness, Fang Bai Nian sells in supermarkets, takeaways and other scenarios.
Preservation of seafood and frozen food: Effectively prevent oxidation and deterioration of seafood and frozen products through vacuum or modified atmosphere packaging (MAP), maintain taste and quality, and extend shelf life.
Meat and vegetable tray packaging: Suitable for fresh meat, vegetable platters, etc., leak-proof sealing design prevents juice leakage, improves product appearance, and is suitable for supermarkets, fresh food e-commerce and other channels.
