Globally cherished for their deep, smoky notes, well-cured bacon and smoked salmon represent a timeless culinary tradition. While traditional smoking methods have preserved and flavored foods for centuries, replicating these results with consistent quality and food safety on an industrial scale requires advanced technological solutions. Modern commercial smokehouses have evolved far beyond basic heated enclosures—they now function as fully automated, precision-controlled environments that transform this age-old craft into a reliable, repeatable production science. So what really goes on inside?
The entire smoking process, managed by a central computer, progresses through three essential stages—beginning with drying, moving to smoking, and concluding with cooking or pasteurization. It is the precise, automated regulation of critical parameters—temperature, humidity, airflow, and smoke density—through every phase that makes the modern smokehouse so effective.
Before exploring the operational stages, familiarizing yourself with the essential components will provide valuable insight into how precision and consistency are maintained.

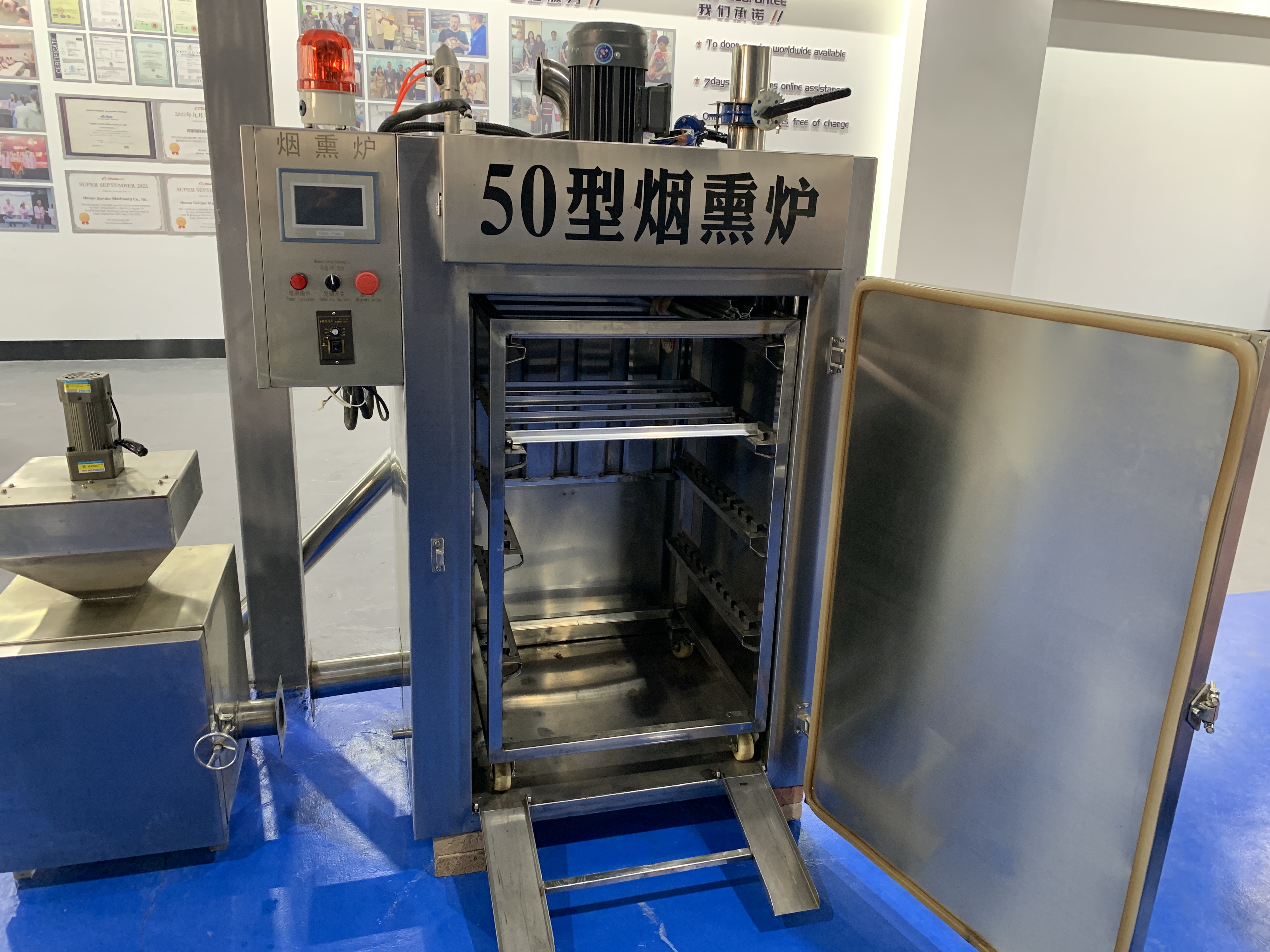

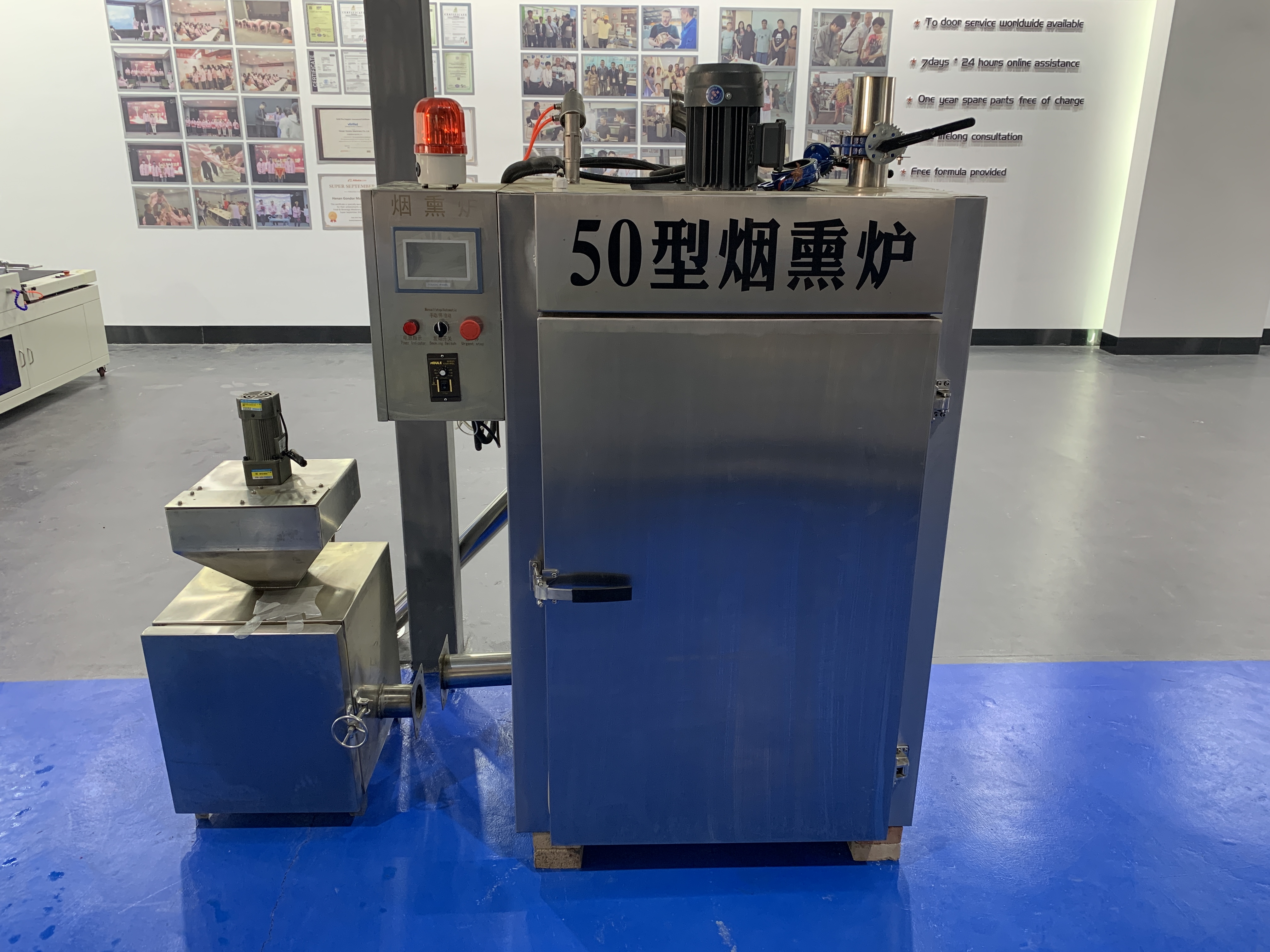

Constructed from high-grade, corrosion-resistant stainless steel, the heavily insulated main cabinet forms the heart of the system—delivering not just long-lasting durability and easy cleaning, but also consistent temperature management and reduced energy consumption.
Commercial smokehouses generally employ one of two heating methods: direct-fired systems use internal gas or electric burners to generate heat directly within the chamber, creating a drier environment suitable for most standard applications; in contrast, indirect-fired systems utilise steam from a central boiler circulated through heat exchangers, producing a more humid atmosphere ideal for moisture-sensitive products like sausages.

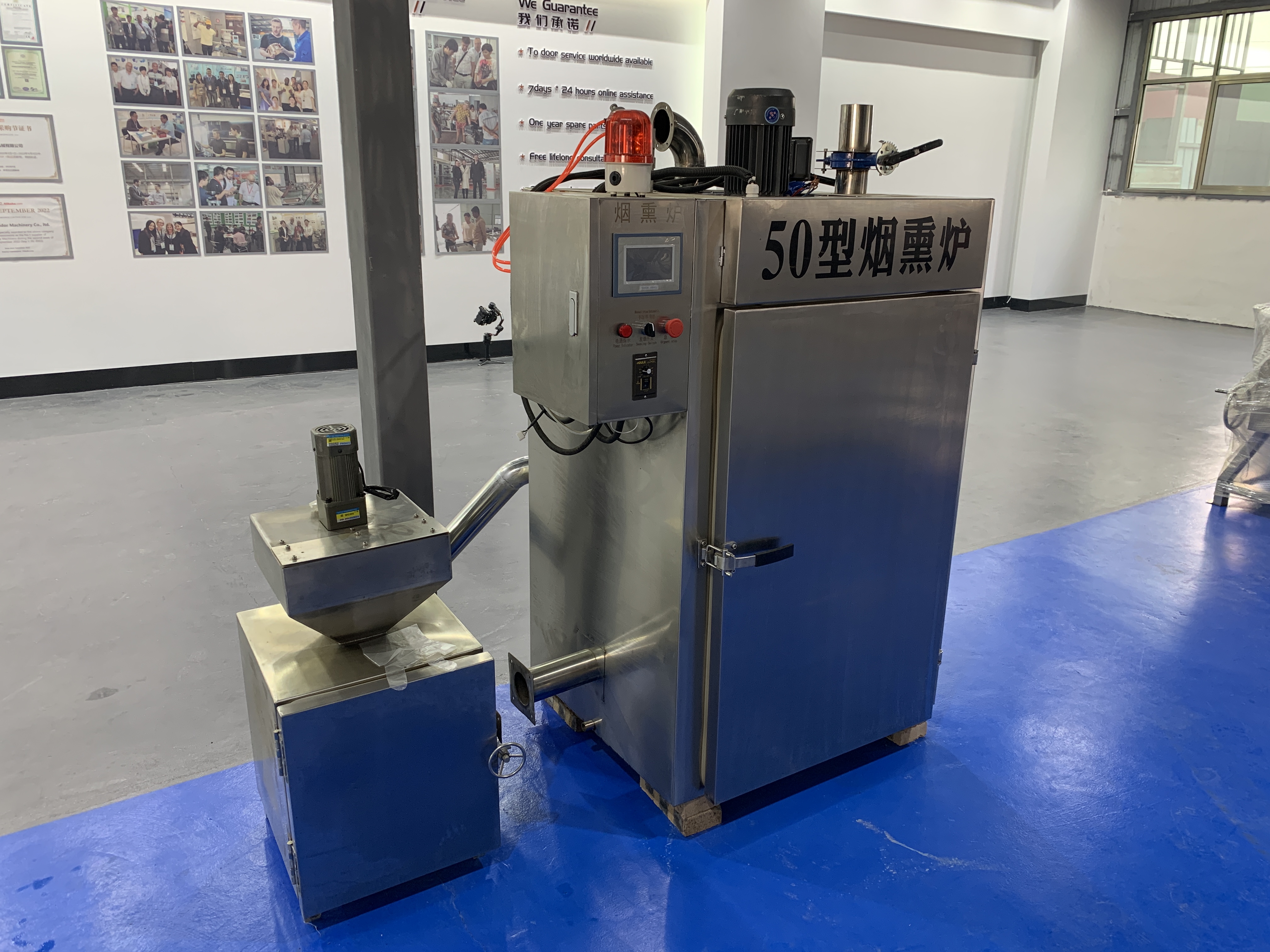

Typically installed as an external module, the smoke generator creates smoke through the combustion of wood-based materials like chips, sawdust, or pellets to impart traditional flavors. In cases where consistency is critical, certain systems can instead use purified liquid smoke, which is vaporised to achieve reliable repeatability between batches.
A powerful fan and a network of ducts and baffles (dampers) are the heart of the system. This setup ensures smoke and heated air are circulated with turbulent, uniform flow around every product rack, eliminating cold spots.
Advanced smokehouses have steam injectors or water sprays to increase humidity and dampers to release moisture and lower it. This control is critical for product yield and texture.
Serving as the operational brain of the smokehouse, the PLC lets operators input exact recipes and then automatically manages the entire multi-stage process, from drying and smoking through to cooking or pasteurizing.
Here is a detailed breakdown of a typical automated cycle for a product like ham or bacon:
The process begins with a phase of warm, dry air rather than smoke. At this stage, the smokehouse is brought to a target temperature—typically ranging from 130 to 140°F (55–60°C)—with the exhaust damper maintained either fully or partially open during the entire heating period. A powerful internal fan then circulates the air evenly throughout the chamber.
Purpose： This initial stage removes surface moisture from the product. Proper smoke adhesion requires a dry surface, as moisture leads to uneven, faint coloring. Through adequate drying, the key components of smoke—the "smoke bouquet"—attach efficiently to the product, developing the ideal golden-brown hue recognized as the "smokehouse bloom."
Once the surface is dry, the smoke generator is activated. Smoke is drawn into the chamber, and the dampers are adjusted to contain it. The temperature is often maintained at a similar or slightly higher range for this phase. The key here is the airflow system. The fan creates a vortex, ensuring the smoke envelops every single product uniformly. Without this forced convection, products closer to the smoke inlet would be darker and more strongly flavored than those farther away.
Purpose: This phase focuses on developing the signature smoky flavour, aroma, and rich mahogany colour characteristic of smoked foods. At the same time, the smoke introduces natural preservatives such as phenols and acids, which contribute to extending the product’s shelf life.
Once the desired color and flavor are achieved, the smoke generator is switched off whilst temperatures are raised significantly. Products such as ham or hot dogs continue heating until reaching an internal temperature typically between 154–165°F (68–74°C)—a critical stage that sets the protein structure, develops the final texture, and eliminates harmful bacteria.
Purpose： While the main objective is to fully cook the product for safety and readiness, precise humidity control remains equally important, since too much dry air leads to shrinkage and texture issues, but well-managed steam maintains moisture and quality.
A short burst of steam is often applied at the start of the final phase in order to lock in moisture and give the product a desirable glossy sheen. Finally, the heat is turned off and the product is cooled—either within the chamber using fresh air or, in high-volume operations, transferred to a dedicated cooling room—to stabilize it before packaging.
Throughout the entire process, the programmable logic controller (PLC) maintains full command. Using data from integrated sensors, the system continually tracks temperature, humidity, and chamber pressure, allowing it to make precise, real-time micro-adjustments to heating, steam, and airflow controls in strict accordance with the programmed recipe. In practice, an operator only needs to select a preset program—such as “Bacon” or “Smoked Turkey”—and the system executes the multi-stage sequence automatically, guaranteeing consistent and repeatable results batch after batch.
Essentially, a commercial smokehouse replicates traditional smoking by applying scientific control to key parameters, including temperature, humidity, airflow, and smoke. This automated approach replaces human estimation with reliable, repeatable cycles. Through distinct, carefully managed phases, it consistently delivers the rich flavor and appealing color consumers desire—while also ensuring food safety, maximizing yield, and guaranteeing product uniformity, which together form the foundation of any successful commercial food business. It is a perfect example of how modern technology elevates a traditional craft to an industrial science.
